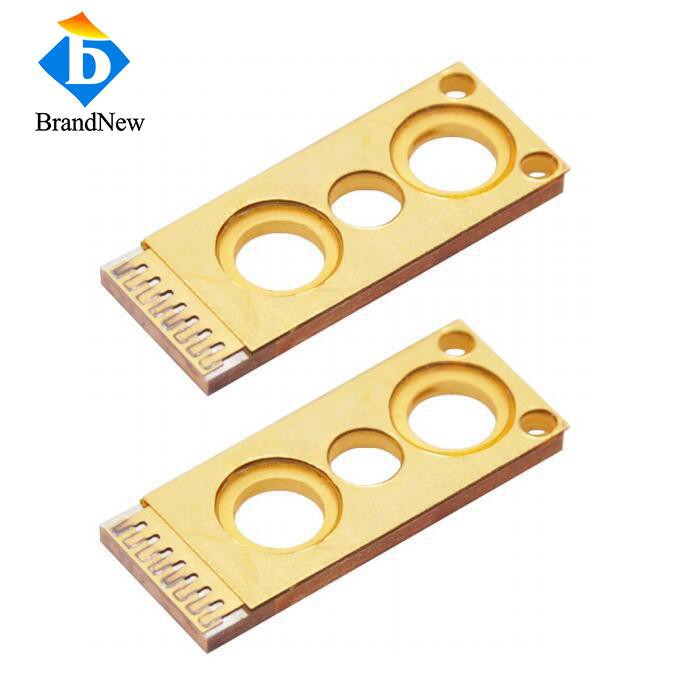

150W 808nm CW Laser Diode

Single Bar Diode Laser

High power 150W 808nm CW

For pumping/hair removal machine/scientific research

Send InquiryChat Now
Product Details

150W 808nm CW Laser Diode

150W 808nm CW Laser Diode for pumping/hair removal machine/scientific research/military/industry cutting/25 emitters/47 emitters


Features
High Reliability
High Stability
Harsh Environmental Applications


Applications
Scientific Research
Pumping
Medical


Specifications

Item No.: CC808SB150

Item Name: 150W 808nm QCW Conduction Cooled Single Bar Diode Laser

Optical

Center Wavelength λ                                                      808nm

Wavelength Tolerance                                                    ±5nm

Working Mode                                                                QCW

Output Power Per Bar                                                    150W

Number of Bars                                                              1

Fast Axis Divergence(FWHM)                                        45Deg

Slow Axis Divergence (FWHM)                                      12Deg

Pulse Width                                                                     200us

Frequency                                                                       100Hz

Duty Cycle                                                                       2%


Electrical

Operating Current Iop                                                      200A

Threshold Current Ith                                                       25A

Operating Voltage Vop                                                     1.8V

Power Conversion Efficiency                                           50%


Thermal

Operating Temperature (No Condensation)                    15~30℃

Storage Temperature (No Condensation)                        0-55℃



Packing & Delivery

Packing
One piece in a case.

Delivery
Normally 1-2 weeks after payment was well received.



Our Company



Core Competency
◆ Diode Packaging   ◆ Beam Shaping
◆ Reliability Testing ◆ Efficient Cooling
