Horizontal Stack for Laser Head Refurbishment

Horizontal Stack for Laser Head Refurbishment

Linear Arrays, Laser Stack, Water Cooled Laser Diode Arrays manufacturer / supplier in China, offering Horizontal Stack for Laser Head Refurbishment, Laser Diode Module Repair, QCW Diode Pumped Laser Modules (DPSS Laser Modules at 1064nm) and so on.

Send Inquiry
Product Details
Brandnew Technology, one of the leading diode laser manufacturers and suppliers in China, has a professional factory which manufacturers high quality horizontal stack for laser head refurbishment and sells at competitive price. Welcome to wholesale our products made in China.


Product Detail


Product Description

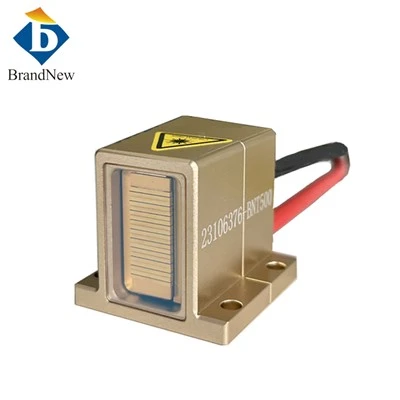

500W 808nm Water Cooled Vertical Stack

Diode laser


We Supply 500W 808nm Water Cooled Vertical Stack
Diode laser with high quality and competitive price.We specialize in Diode Laser for many years.Covering most of Europe and the American market,We are expecting become your long-term partner in China

                                No.: WC808VS500


Advantages

    1.Long Lifetime
    2.AuSn Bonding
    3.High Power

    4.Long storage time
    5.Low Smile
    6.row spectrum


Applications

     1.Pumping

    2.Industry
    3.Medical
    4.Printing
    5.Scientific Research





Specifications

Optical


Center   Wavelength λ

808nm

Wavelength   Tolerance

±15nm

Working Mode

QCW

Output Power   Per Bar

50W

Number of   Bars

10

Bar to Bar   Spacing

2mm

Fast Axis   Divergence(FWHM)

38Deg

Slow Axis   Divergence (FWHM)

12Deg

Polarization   Mode

TE

Slope   Efficiency

≥1.0W/A

Pulse Width

≤400ms

Duty Cycle

≤40%

Electrical


Operating   Current Iop

55A

Threshold   Current Ith

12A

Operating   Voltage Vop

21V

Power   Conversion Efficiency

45%

Power   Conversion Efficiency

45%

Thermal


Operating Temperature (No   Condensation)

15~30℃ (No Condensation)

Storage   Temperature (No Condensation)

0-55℃(No Condensation)

Storage   Temperature (No Condensation)

0-55℃(No Condensation)

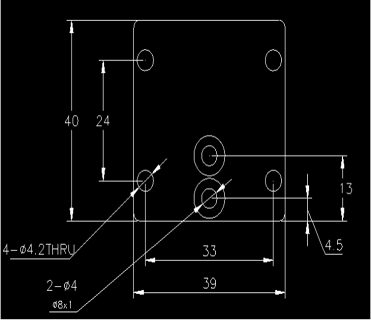

Package Drawing

Related Products

60W 808nm CW CS Mount Conduction Cooled Single Bar Diode Laser FAC

100W laser diode 808nm laser Bar Diode micro channel bar water cooled


160W 808nm Diode Laser Bar,Water Cooled Horizontal Stack Diode Laser

About us

BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and also Zhejiang University, Today, over 60 technicians and 2 scientists,20 technicians are with PHD degree.
BrandNew 's strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.

Factory View

Workshop outline

Workflow

Equipment

Core Competency


 Diode Packaging   ◆ Beam Shaping


◆ Reliability Testing ◆ Efficient Cooling

Certifications


Packing & Delivery

Packing

One set in a case(According to your request)

Delivery

Normally 1-2 Weeks
FedEx,DHL Express,UPS,TNT



Payment Term
T/T and Western Union, For your Choice

Return Policy

Buyer Pay the Shipping Cost.



FAQ

Q1. Is it a reliable company

Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.

Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60 technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNew’s strengths are in talent employees, quality engineering, Process control, product development and volume manufacturing.


Q2.  About MOQ.

The MOQ. is 1 sets for our existing product.


Q3   What about the delivery?

We can offer the door to door services by air or by sea, just depend on your actual request. Such as DHL, UPS, TNT, FEDEX


Q4 .After sale service

1. We offer an instant 7 days return policy. (7 days after receiving the items)
2. If the items are defective, please notify us within 3 days of delivery.
3. Any items must be returned in their original condition to qualify for a refund or replacement.

4.If you have any question, please contact us via E-mail or Sales manager.

Q5. How long is our warranty time

We provide you 1 years warranty time, in 1 years, all the service are free.

Contact us



Product Description

The laser diode bar linear arrays are widely used in ND: YAG side pumping, especially for very high power DPSS lasers

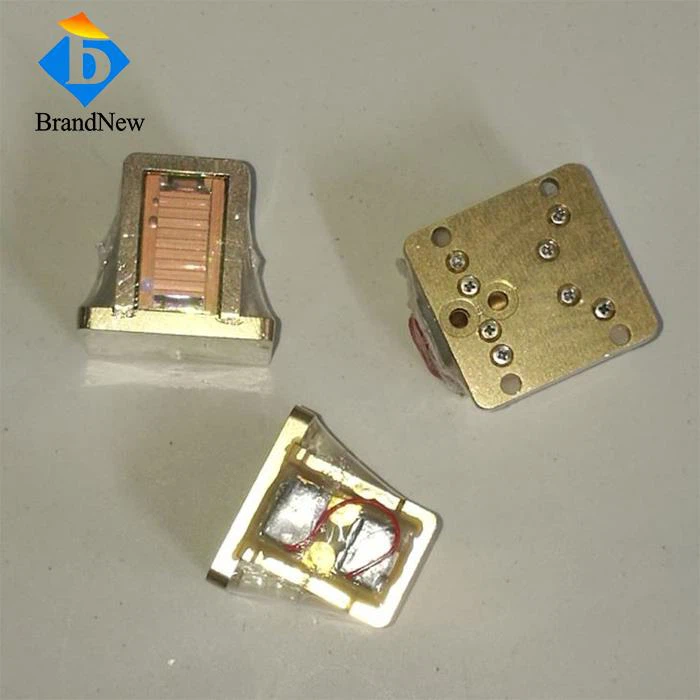

Laser Diode Bar Linear Arrays (Horizontal Stacks)
The laser diode bar linear arrays are widely used in ND: YAG side pumping, especially for very high power DPSS lasers.
The output power is 20W or 40W for each diode bar.
The regular wavelength is 808nm, other wavelength can be customized (780nm, 880nm, 915nm, 976nm, 980nm or etc).
The wavelength & output have been exactly controlled during the mounting & buin-in-test. Expected life time of 10, 000 hours, 13 months warranty after delivery.
Our main products:
3x20W Linear Arrays (808nm)
3x40W Linear Arrays (808nm)
4x20W Linear Arrays (808nm)
4x40W Linear Arrays (808nm)
5x20W Linear Arrays (808nm)
5x40W Linear Arrays (808nm)
Nx20W/40W Laser Diode Bar Linear Arrays (780nm, 808nm, 880nm, 915nm, 976nm, 980nm)
Nx60W/80W MMC Horizontal Stacks
For detailed Catalog and Price List, pls feel free to contact with me. Any kind of reply will be much appreciate.
