Laser Pumping For 30W 915nm CW/QCW Fiber Coupled Diode

30W 915nm CW/QCW/Pulse/ Multimode fiber coupled diode for for laser pumping/material processing/industry/medical

Send Inquiry
Product Details

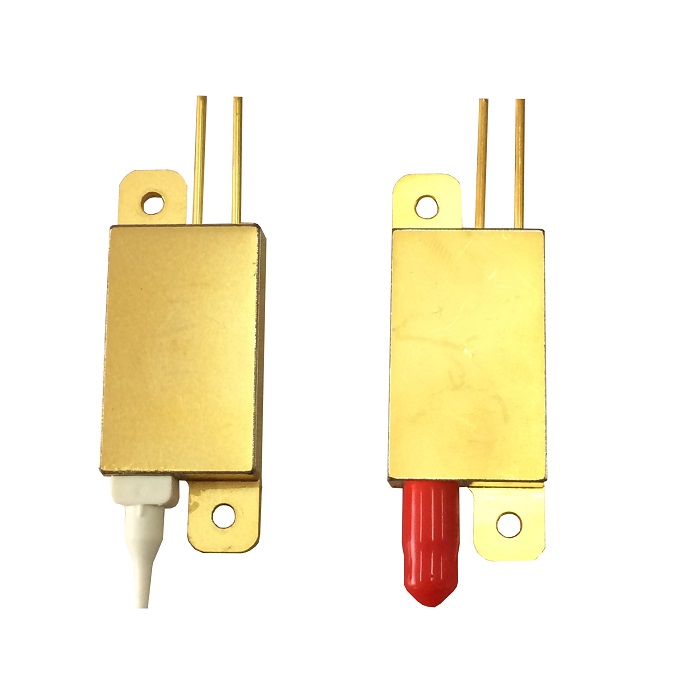

Laser Pumping For 30W 915nm CW/QCW Fiber Coupled Diode




We Supply cheaper 30W 915nm CW/QCW Fiber Coupled Diode For Laser Pumping .We specialize in Diode Laser for many years.Covering most of Europe and the American market,We are expecting become your long-term partner in China


Advantages

1.High stability

2.0.22NA 105μm core multimode fiber

3.RoHS compliance

4.Long Lifetime

Applications

1.Pumping

2.Material Processing

3.Medical

4.Printing

Specifications


Item No.: FC915DL30

Item Name: 30W 915nm CW/QCW/Pulse/ Multimode fiber coupled diode for for laser pumping/material processing/industry/medical/printing/CTP/display/projection/defense/military and scientific research/optional red aiming beam/PD photodetector/thermistor/TEC peltier/fiber detector

Optical

Center Wavelength λ

915nm

Wavelength Tolerance

±10nm

Output Power

30W

Spectral Width FWHM

7nm

>90% Power

0.15NA

Slope Efficiency

2.7W/A

Fiber

Fiber Bend Radius

>30mm

Fiber Core/Cladding/Buffer Diameter

105um/125um/250um

Fiber Numerical Aperture

0.15NA or 0.22NA

Fiber Length

1m

Fiber Connector

SMA905

Electrical

Operating Current Iop

11.5A

Threshold Current Ith

0.9A

Operating Voltage Vop

5.4V

Power Conversion Efficiency

47%

Thermal

Operating Temperature (Non-Condensing)

15~35℃

Storage Temperature (Non-Condensing)

-20-55℃

Wavelength Temperature Coefficient

~0.3nm/℃



Packing
One piece in a Case(According to your request)
Delivery
Normally 1-2 weeks after payment was well received,FedEx,DHL Express,UPS,TNT


Payment Term
T/T or Western Union are for your choices.
Return Policy
If Return, Buyer Pay the Shipping Cost


Our Company


Hangzhou Brandnew Technology Co., Ltd.

Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide
range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.

Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60
technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room
with 2000 square meters. Turnover per year is more than 10M US dollars.

BrandNew’s strengths are in talent employees, quality engineering,Process control, product development and volume
manufacturing.

Core Competency
◆ Diode Packaging ◆ Beam Shaping
◆ Reliability Testing ◆ Efficient Cooling


Certifications


FAQ

Q1. About MOQ.
The MOQ. is 1 sets for our existing product.
Q2 What about the delivery?
We can offer the door to door services by air or by sea, just depend on your actual request. Such as DHL, UPS, TNT,
FEDEX
Q3 .After sale service
1. We offer an instant 7 days return policy. (7 days after receiving the items)
2. If the items are defective, please notify us within 3 days of delivery.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4.If you have any question, please contact us via E-mail or Sales manager.
Q4. How long is our warranty time
We provide you 1 years warranty time, in 1 years, all the service are free
