30W 976nm Multi-mode Fiber Coupled Diode Laser With Coherent Bars

30W 976nm Multi-mode Fiber Coupled Diode Laser With Coherent Bars

105um 0.22NA 1m SMA905/ST/FC

For Laser Engraving,Laser Pumping Source

Laser Lighting,Scientific Research Display

Send InquiryChat Now
Product Details

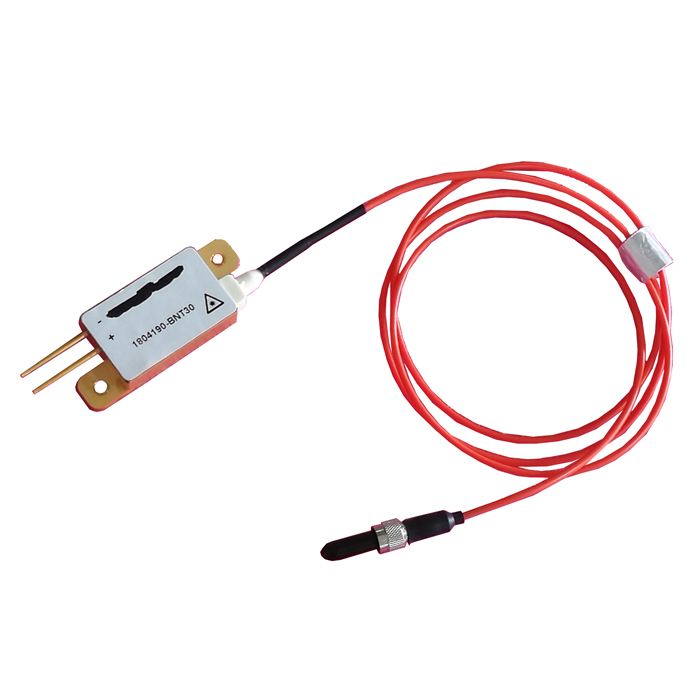

 30W 976nm Multi-mode Fiber Coupled Diode Laser With Coherent Bars


Feature:

105um

0.22NA

1m

SMA905/ST/FC

Coherent bars



Application:

Laser Marking

Laser Engraving

Fiber Laser Pumping Source

Laser Lighting

Scientific Research

Display Entertainment




Specification

Item No.: FC976DL30
Item Name: 30W 976nm Fiber Coupled Diode Laser


Optical
Center Wavelength λ 976±5nm
Output Power 30W
Working Mode CW
Spectral Width FWHM 4nm
>90% Power 0.15NA
Slope Efficiency 2.7W/A


Fiber
Fiber Bend Radius >60mm
Fiber Length 1m
Fiber Core 105um
Fiber Numerical Aperture 0.22NA
Fiber Connector SMA905


Electrical
Operating Current Iop 11.5A
Threshold Current Ith 0.9A
Operating Voltage Vop 5.6V
Power Conversion Efficiency 45%


Thermal
Operating Temperature (Non-Condensing) 15~55℃
Storage Temperature (Non-Condensing) -30-70℃
Wavelength Temperature Coefficient ~0.3nm/℃




Order Procedure:

1.Contact us for more details by email

2.We send PI to you for payment, payment term is T/T or Western Union

3.Once payment is done, we will arrange production

4.Delivery time is 1-4 weeks depends on different order qty and request.

5.After delivery, we will send you DHL UPS FedEx TNT tracking no

6.Quality warranty is 12 months


Customers Comments:


Remarks

Other models are available upon your choices,such as with more functions, TEC,PD,Aiming Beam,Detachable Fiber,pls contact us freely.



Brandnew Technology, one of the leading diode laser manufacturers and suppliers in China, has a professional factory which manufacturers high quality 30w 976nm multi-mode fiber coupled diode laser with coherent bars and sells at competitive price. Welcome to wholesale our products made in China.
