808nm 160W Macro Channel Water Cooled Horizontal Laser Bar Stack Diode

808nm 160W Macro Channel Water Cooled Horizontal Laser Bar Stack Diode

Horizontal Stack Laser Diode

808nm 160W Macro Channel QCW

Water Cooled Laser Diode

Send InquiryChat Now
Product Details

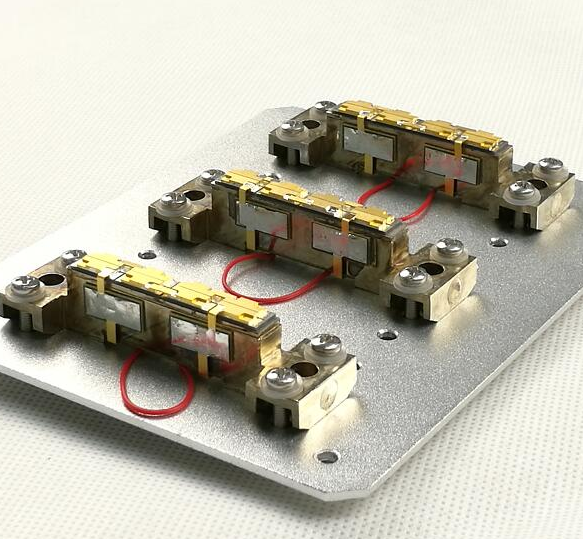

808nm 160W Macro Channel Water Cooled Horizontal Laser Bar Stack Diode



This 808nm 160W Macro Channel Water Cooled Horizontal Laser Bar Stack Diode is in high quality and with a competitive price.We have specialized in Diode Laser for many years.Covering most of Europe and the American market,We are expecting become your long-term partner in China.


Advantages
FAC Available
SAC Available


Applications
Pumping
Industry
Scientific Research
Medical

Specifications

Item No.: WC808HS160

Item Name: 808nm 160W Macro Channel Water Cooled Horizontal Bar for laser pumping/material processing/industry/medical/printing/display/projection/defense/military and scientific research/hair removal/25 emitters/47 emitters/49 emitters

Optical

Center Wavelength λ

808nm

Wavelength Tolerance

±5nm

Working Mode

CW

Output Power Per Bar

40W

Number of Bars

4

Fast Axis Divergence(FWHM)

≤39Deg

Slow Axis Divergence (FWHM)

≤12Deg

Polarization Mode

TM

Electrical

Operating Current Iop

≤43A

Threshold Current Ith

≤10A

Operating Voltage Vop

≤9V

Power Conversion Efficiency

≥46%

Thermal

Operating Temperature

15~30℃

Storage Temperature

-40~+80℃

Coolant

Filtered Water


Our Company



Service purpose

With the most reasonable price and perfect services, to provide the best products to the customer demand as the guidance, to improve customer production efficiency and quality as the goal, constantly introducing advanced foreign technology and products, bring more comprehensive site solutions for our customers.


Certifications


Order Procedure

1. Contact us for more details by email.

2. We send PI to you for payment, payment term is T/T or Western Union.

3. Once payment is done, we will arrange production.

4. Delivery time is 1-4 weeks depends on different order qty and request.

5. After delivery, we will send you DHL UPS FedEx TNT tracking No.

6. Quality warranty is 18 months.


 FAQ

Q1. About MOQ.
The MOQ. is 1 sets for our existing product.

Q2. About sample.

Sample is not free.
