1500W 976nm Horizontal Stack Bar Diode Laser

Item Name: 1500W 976nm Horizontal Stack Bar Diode Laser

Send Inquiry
Product Details

1500W 976nm Horizontal Stack Bar Diode Laser


We Supply 1500W 976nm Horizontal Stack Bar Diode Laser. And we specialize in Diode Laser for many years and we are looking forward to becoming your long-term partner in the future of China.


Advantages
Uniform Beam Profile
High Quality

Quick Lead Time
Low MOQ


Applications
Pumping
Scientific Research


Specifications

Item No.: CC976HS1500

Item Name:1500W 976nm Horizontal Stack Bar Diode Laser

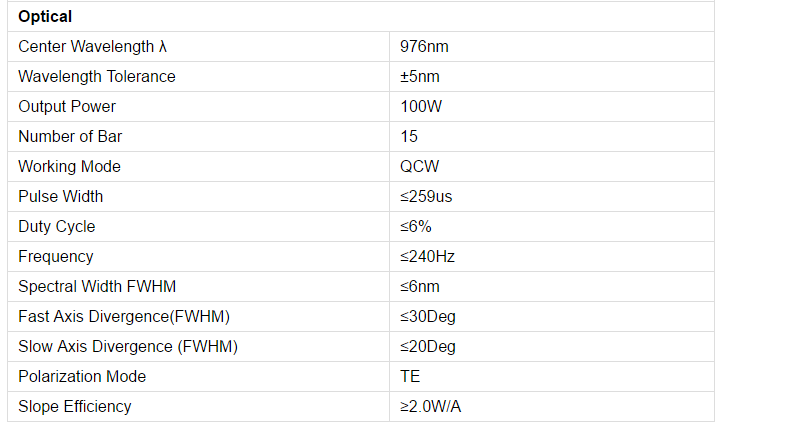

Optical

Center Wavelength λ

976nm

Wavelength Tolerance

±5nm

Output Power

100W

Number of Bar

15

Working Mode

QCW

Pulse Width

≤259us

Duty Cycle

≤6%

Frequency

≤240Hz

Spectral Width FWHM

≤6nm

Fast Axis Divergence(FWHM)

≤30Deg

Slow Axis Divergence (FWHM)

≤20Deg

Polarization Mode

TE

Slope Efficiency

≥2.0W/A

Electrical

Operating Current Iop

≤165A

Threshold Current Ith

≤19A

Operating Voltage Vop

≤30V

Power Conversion Efficiency

≥54%

Thermal

Operating Temperature

70℃

Storage Temperature

-40-85℃

Wavelength Temperature Coefficient

~0.33nm/℃


Packing
One Piece in a Case(According to your request)


Delivery
Normally 5-10 days after payment was well received



Payment Term
T/T or Western Union

Return Policy
If Return, Buyer Pay the Shipping Cost
