Cheaper 975nm/976nm/980nm 500W CW/QCW/Pulse Horizontal Stack Diode Laser

Item Name: High Power 500W 975nm/976nm/980nm CW/QCW/Pulse Conduction Cooled Horizontal Stack Diode Laser for laser pumping

Send Inquiry
Product Details

Cheaper 975nm/976nm/980nm 500W CW/QCW/Pulse Horizontal Stack Diode Laser



Advantages
Long Lifetime
High Power
Uniform Beam Profile

Applications
Pumping
Industry
Scientific Research
Medical

Specifications


Item No.: CC976HS500

Item Name: High Power 500W 975nm/976nm/980nm CW/QCW/Pulse Conduction Cooled Horizontal Stack Diode Laser for laser pumping/material processing/industry/medical/printing/display/projection/defense/military and scientific research/hair removal/25 emitters/47 emitters/49 emitters

Optical

Center Wavelength λ

976nm

Wavelength Tolerance

±5nm

Output Power

100W

Number of Bar

5

Working Mode

QCW

Pulse Width

≤230us

Duty Cycle

≤2%

Frequency

≤240Hz

Spectral Width FWHM

≤7nm

Fast Axis Divergence(FWHM)

≤41Deg

Slow Axis Divergence (FWHM)

≤11Deg

Polarization Mode

TE

Slope Efficiency

≥1.0W/A

Electrical

Operating Current Iop

≤102A

Threshold Current Ith

≤13A

Operating Voltage Vop

≤10V

Power Conversion Efficiency

≥56%

Thermal

Operating Temperature

70℃

Storage Temperature

-40-85℃

Wavelength Temperature Coefficient

~0.33nm/℃


Packing
Flight Case(According to your request)
Delivery
Normally 1-2 weeks after payment was well received,FedEx,DHL Express,UPS,TNT


Payment Term
T/T or Western Union are for your choices.
Return Policy
If Return, Buyer Pay the Shipping Cost


Our Company


Hangzhou Brandnew Technology Co., Ltd.
Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide
range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.

Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60
technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room
with 2000 square meters. Turnover per year is more than 10M US dollars.

BrandNew’s strengths are in talent employees, quality engineering,Process control, product development and volume
manufacturing.

Core Competency
◆ Diode Packaging ◆ Beam Shaping
◆ Reliability Testing ◆ Efficient Cooling


Certifications

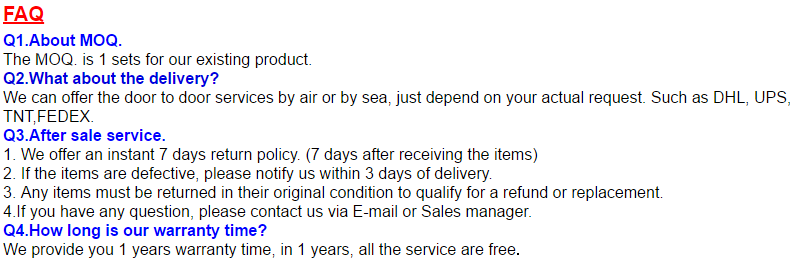

FAQ

Q1. About MOQ.
The MOQ. is 1 sets for our existing product.
Q2 What about the delivery?
We can offer the door to door services by air or by sea, just depend on your actual request. Such as DHL, UPS, TNT,
FEDEX
Q3 .After sale service
1. We offer an instant 7 days return policy. (7 days after receiving the items)
2. If the items are defective, please notify us within 3 days of delivery.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4.If you have any question, please contact us via E-mail or Sales manager.
Q4. How long is our warranty time
We provide you 1 years warranty time, in 1 years, all the service are free
