20W 808nm Unmounted Diode Laser Bars and Chips High reliability Advanced in power,brightness,efficiency and divergence. Customized Option if needed.

Send InquiryChat Now
Product Details

    LASER CHIPS1.jpg




    20W 808nm Unmounted Diode Laser Bars and Chips

    High reliability

    Advanced in power,brightness,efficiency and divergence.

    Customized Option if needed


    Operation:

    Central Wavelength
    808nm
    Optical output power
    20W
    Operation mode
    CW
    Power modulation
    100%
    Geometrical:

    Numbers of Emitters
    47
    Emitter Width
    80um
    Emitter Pitch
    200um
    Filling Factor
    40%
    Bar Width
    10000um
    Cavity Length
    1000um
    Thickness
    125um
    Electro Optical Data:

    Fast Axis Divergency (FWHM)
    36deg
    Slow Axis Divergency (FWHM)
    12deg
    Spectral Bandwidth (FWHM)
    4nm
    Pulse Wavelength
    808nm
    Slope Efficiency
    1.2W/A
    Conversion Efficiency
    45%
    Threshold Current
    9~10A
    Operating Current
    26~28A
    Operating Voltage
    1.7~1.9V
    Temperature Characteristics
    0.28nm/℃
    Polarization
    TE
    LD Operating Temperature
    25℃

    Order Procedure

    1. Contact us for more details by email

    2. We send PI to you for payment, payment term is T/T or Western Union

    3. Once payment is done, we will arrange production

    4. Delivery time is 1-4 weeks depends on different order qty and request.

    5. After delivery, we will send you DHL UPS FedEx TNT tracking no

    6. Quality warranty is 18 months



    Remarks

    Other models are available upon your choices,pls contact us freely

Laser Chip (23).jpg

product

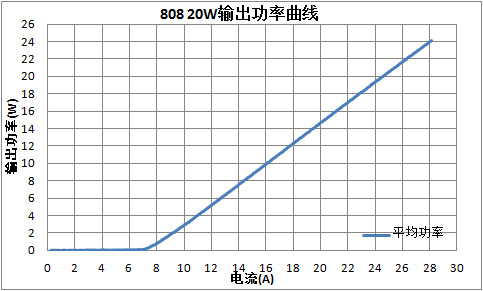

PIV Chart


Brandnew Technology, one of the leading diode laser manufacturers and suppliers in China, has a professional factory which manufacturers high quality 20w 808nm umounted semiconductor diode laser bars and chips and sells at competitive price. Welcome to wholesale our products made in China.
