Germany Bar 300W 1064nm Water Cooled Vertical Stack Diode Laser For Hair Removal Machine

Germany Bar 300W 1064nm Water Cooled Vertical Stack Diode Laser For Hair Removal Machine

300W 1060nm

Water Cooled Vertical Stack Diode Laser

For Hair Removal Machine

Send InquiryChat Now
Product Details

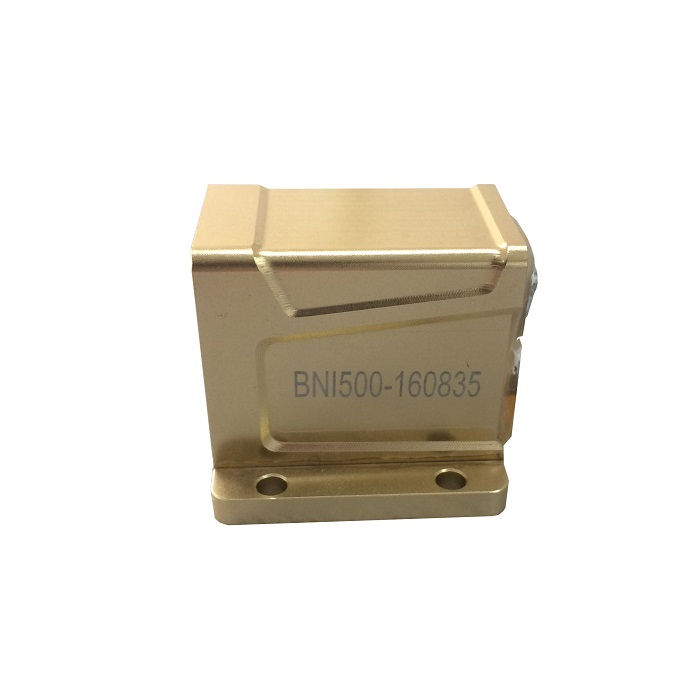

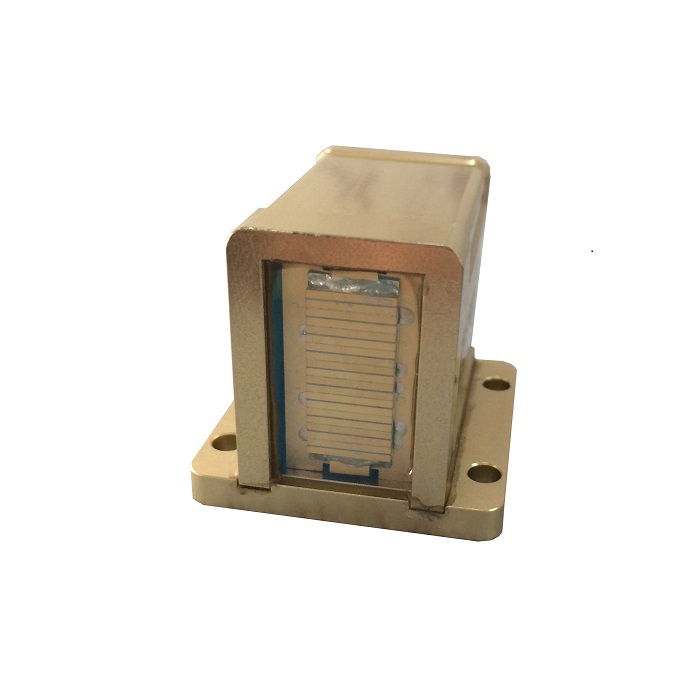

Germany bar 300W 1064nm Water Cooled Vertical Stack Diode Laser for Hair Removal Machine



No.:WC808VS500

Item Name:300W 1064nm Water Cooled Vertical Stack Diode laser

Features:High quality with competitive price

Markets:Covering most of Europe and the American market

Our Goal:To be your long-term partner in China.




Advantages

    1.Long lifetime

    2.AuSn Bonding

    3.High Power

    4.Long storage time

    5.Low Smile

    6.row spectrum



Applications

    1.Pumping

    2.Industry

    3.Medical

    4.Printing

    5.Scientific Research


Specifications

Optical


Center Wavelength λ

1064nm±20nm

Working Mode

QCW/Macro-Channel

Output Power Per Bar

100W

Number of Bars

3

Bar to Bar Spacing

3.4mm

Fast Axis Divergence(FWHM)

38Deg

Slow Axis Divergence (FWHM)

12Deg

Polarization Mode

TE

Slope Efficiency

≥1.0W/A

Pulse Width

≤400ms

Duty Cycle

≤40%



Electrical


Operating Current Iop

120A

Threshold Current Ith

20A

Operating Voltage Vop

6V

Power Conversion Efficiency

45%



Thermal


Operating Temperature (No Condensation)

23~27℃ (No Condensation)

Storage Temperature (No Condensation)

0-55℃(No Condensation)

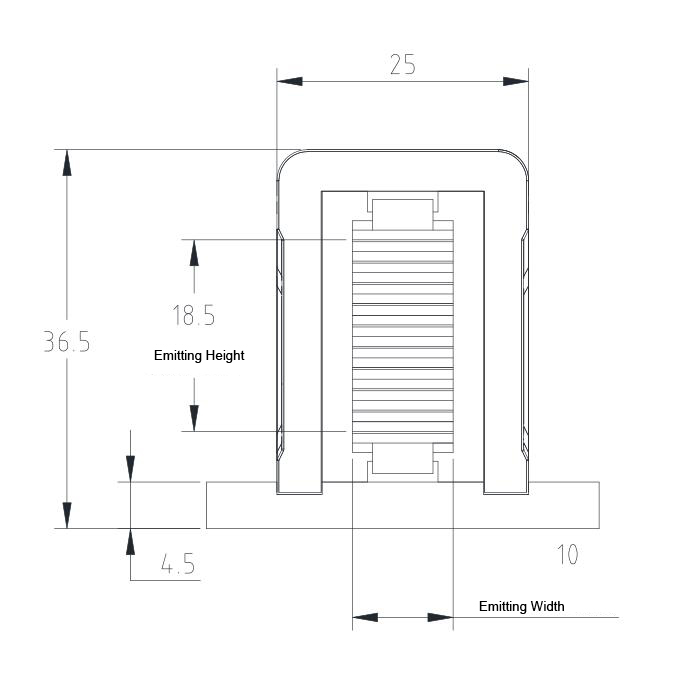

Package Drawing

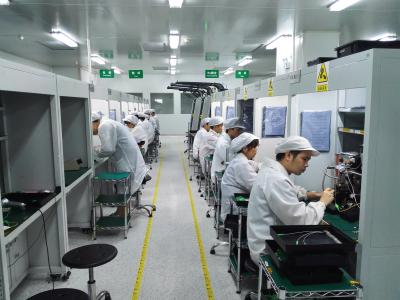

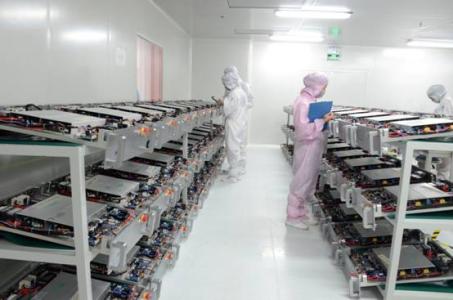

Factory View



About us


   BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar and plug and play lasers.

         Cooperated with Institute of semiconductors Chinese academy of sciences and also Zhejiang University. Today, over 60 technicians and 2 scientists,20 technicians are with PHD degree.

         BrandNew 's strengths are in talent employees, quality engineering, process control, product development and volume manufacturing.



Core Competency


 Diode Packaging   ◆ Beam Shaping


◆ Reliability Testing    ◆ Efficient Cooling

Certifications




Packing

One set in a case(According to your request).


Delivery

Normally 1-2 Weeks, FedEx,DHL Express,UPS,TNT.
