500W QCW 808nm Laser Stack With 10Bars For Hair Removal Machine

500W QCW 808nm Laser Stack With 10Bars For Hair Removal Machine

WC808VS500

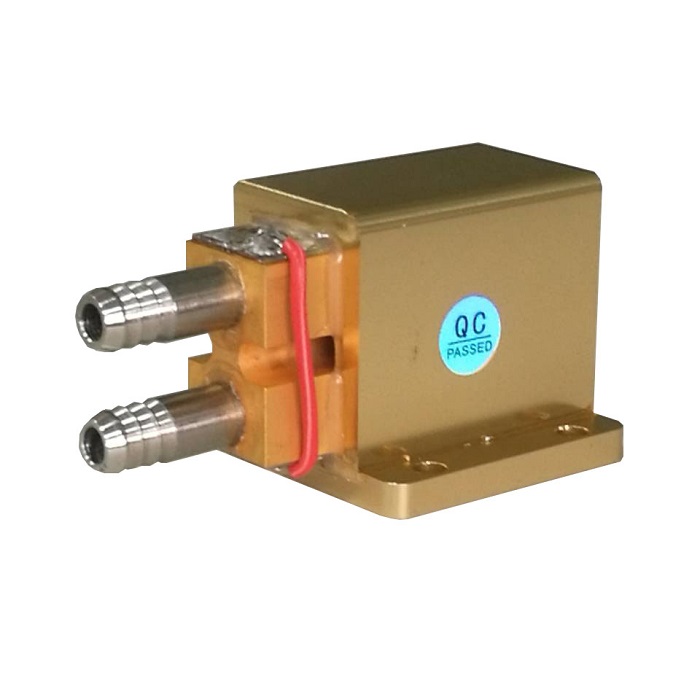

500W 808nm Water Cooled Vertical Stack Diode Laser

500W QCW 808nm Laser Stack With 10Bars For Hair Removal Machine

Send Inquiry
Product Details

500W QCW 808nm Laser Stack With 10Bars For Hair Removal Machine


Specifications

Item No.: WC808VS500
Item Name: 500W 808nm Water Cooled Vertical Stack Diode Laser


Optical
Center Wavelength λ                                                                     808nm
Wavelength Tolerance                                                                   ±15nm
Working Mode                                                                                QCW
Output Power Per Bar                                                                   50W
Number of Bars                                                                              10
Bar to Bar Spacing                                                                        2mm
Fast Axis Divergence(FWHM)                                                     38Deg
Slow Axis Divergence (FWHM)                                                   12Deg
Polarization Mode                                                                          TE
Slope Efficiency                                                                             ≥1.0W/A
Pulse Width                                                                                    ≤400ms
Duty Cycle                                                                                       ≤40%


Electrical
Operating Current Iop                                                                    55A
Threshold Current Ith                                                                      12A
Operating Voltage Vop                                                                  19V
Power Conversion Efficiency                                                        45%


Thermal
Operating Temperature (No Condensation)                                15~30℃
Storage Temperature (No Condensation)                                    0-55℃

Others:

Power from 100W to 10000W can be available, please contact us for more details.


Product Detail




Our Company


Hangzhou Brandnew Technology Co., Ltd.


Core Competency
◆ Diode Packaging  ◆ Beam Shaping
Reliability Testing   Efficient Cooling


Order Procedure

1. Contact us for more details by email.

2. We send PI to you for payment, payment term is T/T or Western Union.

3. Once payment is done, we will arrange production.

4. Delivery time is 1-4 weeks depends on different order qty and request.

5. After delivery, we will send you DHL UPS FedEx TNT tracking NO.

6. We provide you 12 months warranty time, in 12 months, all the service are free.
