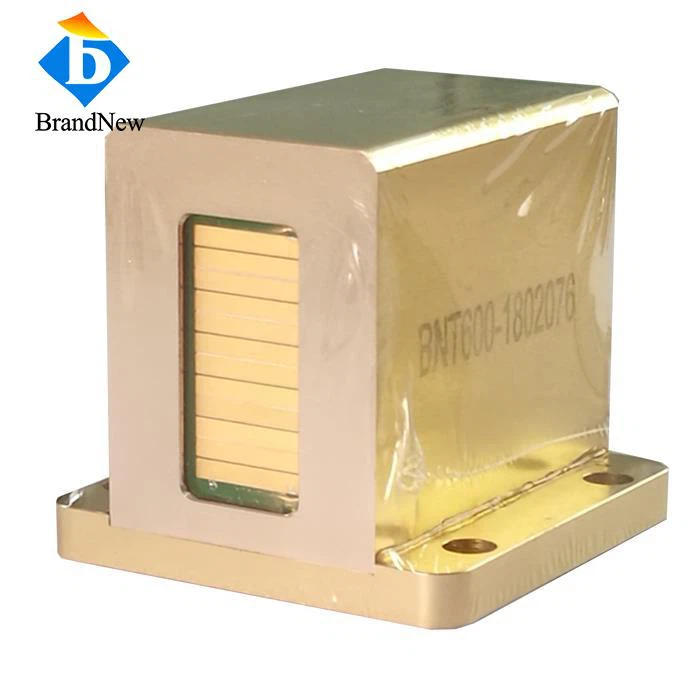

760nm/808nm/1064nm 600watt Vertical Stack Bar Laser Diode

We supply 760nm/808nm/1064nm 600watt Vertical Stack Bar Laser Diode with a professional factory which manufacturers high quality  and sells at competitive price.


Advantages:
1.Better Effect for different skin color

2.Optimized OE Conversion Efficiency.

Specifications:

Item No.: MWWC808VS600
Item Name: 760nm/808nm/1064nm 600watt Vertical Stack Bar Laser Diode


Optical
Center Wavelength λ760±20nm
Output Power600W
Number of Bars 6


Center Wavelength λ808±20nm
6Output Power600W
Number of Bars 6


Center Wavelength λ1064±20nm
Output Power600W
Number of Bars 6


Working ModeQCW
Pitch Between Bars3.4mm
Fast Axis Divergence(FWHM)~39Deg
Slow Axis Divergence (FWHM)~13Deg
Pulse Width10~400ms
Duty Cycle1~42%


Electrical
Operating Current Iop~120A
Threshold Current Ith~20A
Operating Voltage Vop~1.8V/Bar
Power Conversion Efficiency~49%

Product view:









Packing

One set in a case(According to your request)

Delivery

Normally one to four Weeks with FedEx,DHL Express,UPS,TNT



Payment Term

T/T and Western Union, For your Choice


Return Policy

Buyer Pay the Shipping Cost


Our Company


Hnagzhou Brandnew Technology Co.,Ltd

Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60 technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNew’s strengths are in talent employees, quality engineering,Process control, product development and volume manufacturing.

Certifications




FAQ

Q1. About MOQ.
The MOQ. is 1 sets for our existing product.
Q2.What about the delivery?
We can offer the door to door services by air or by sea, just depend on your actual request. Such as DHL, UPS, TNT,
FEDEX.

Q3. How long is our warranty time?
We provide you 12 months warranty time, in 12 months, all the service are free.

Q4.About sample.

Sample is not free.


Order Procedure

1. Contact us for more details by email

2. We send PI to you for payment, payment term is T/T or Western Union

3. Once payment is done, we will arrange production

4. Delivery time is 1-4 weeks depends on different order qty and request.

5. After delivery, we will send you DHL UPS FedEx TNT tracking NO.



Remarks

Other models are available upon your choices,pls contact us freely
