BNI Laser High quality 9xxnm 940nm 976nm 915nm 1200W QCW Water Cooled Vertical Stack Laser Diode

BNI Laser High quality 9xxnm 940nm 976nm 915nm 1200W QCW Water Cooled Vertical Stack Laser Diode

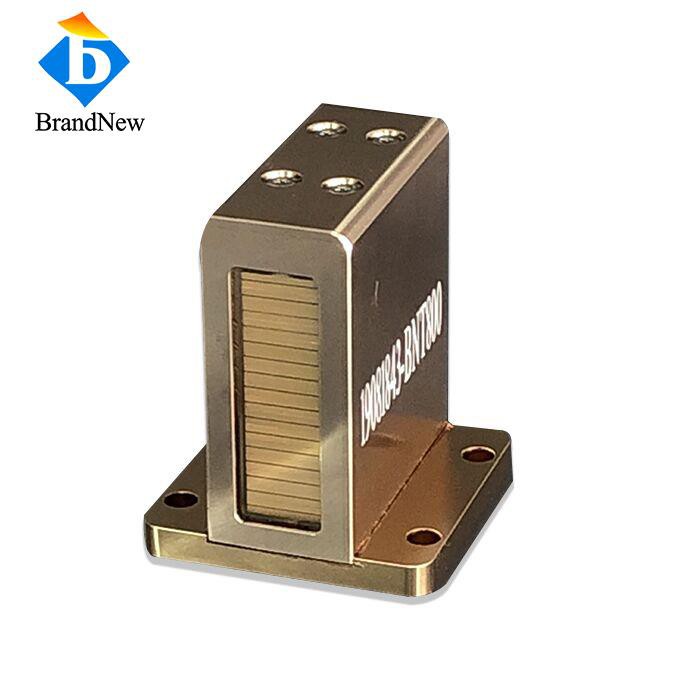

High quality 1200W 808nm 940nm 976nm 915nm

QCW Water Cooled Vertical Stack Diode Laser

Micro Channel Laser Diode

Send Inquiry
Product Details

BNI Laser High quality 9xxnm 940nm 976nm 915nm 1200W QCW Water Cooled Vertical Stack Laser Diode


We Supply 1200W 9xxnm Water Cooled Vertical Stack Diode Laser.We specialize in Diode Laser for many years.

Covering most of Europe and the American market,We are expecting become your long-term partner in China.



1200W 9xxnm Vertical Stack Laser Diode, LD ,CW,Macro-Channel Water Cooled



Specifications

Item No.: WC9XXVS500

Item Name: High power 1200W 9xxnm CW/QCW/Pulse Water Cooled Vertical Stack Diode Laser for laser pumping/material processing/industry/medical/printing/display/projection/defense/military and scientific research/hair removal/25 emitters/47 emitters/49 emitters

Optical

Center Wavelength λ

9xxnm 940nm 976nm 915nm

Wavelength Tolerance

±15nm

Working Mode

QCW

Output Power Per Bar

100W

Number of Bars

12

Bar to Bar Spacing

2mm

Fast Axis Divergence(FWHM)

38Deg

Slow Axis Divergence (FWHM)

12Deg

Polarization Mode

TE

Slope Efficiency

≥1.0W/A

Pulse Width

≤400ms

Duty Cycle

≤40%

Electrical

Operating Current Iop

55A

Threshold Current Ith

12A

Operating Voltage Vop

21V

Power Conversion Efficiency

45%

Thermal

Operating Temperature (No Condensation)

15~30℃

Storage Temperature (No Condensation)

0-55℃

Others

Coolant

Filtered Water

Flow Rate/Bar

3.5L~4.0L/min

Max Inlet Pressure

400kPa

Water Temperature(No Condensation)

15~25℃

Filtered Water Particles

<20μm


Packing

One piece in a case(According to your request).
Delivery
Normally 1-2 weeks after payment was well received,FedEx,DHL Express,UPS,TNT.


Payment Term
T/T or Western Union are for your choices.
Return Policy
If Return, Buyer Pay the Shipping Cost.
