New 600W 808nm Hair Removal Diode Laser With 10Bars

New 600W 808nm Hair Removal Diode Laser With 10Bars

Hair Removal Diode Laser For Beauty Machine

600W 808nm Diode Laser

QCW pulse

Send InquiryChat Now
Product Details

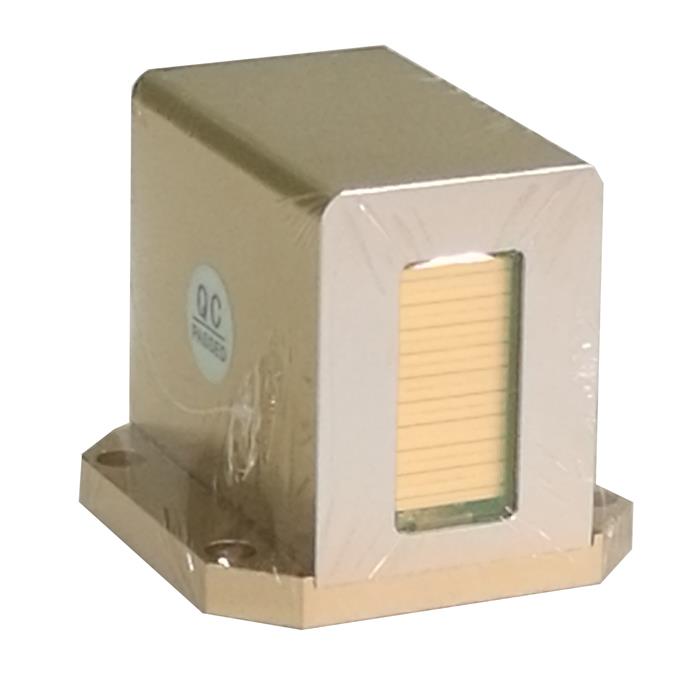

New 600W 808nm Hair Removal Diode Laser with 10Bars




Application:

  • Hair Removal Machine Handle

  • Beauty Machine Handle



Item No.: WC808VS600
Item Name: 600W 808nm Water Cooled Vertical Stack Diode Laser


Specifications
Optical
Center Wavelength λ                                                          808nm
Wavelength Tolerance                                                        ±10nm
Working Mode                                                                    QCW
Output Power Per Bar                                                        60W
Number of Bars                                                                  10
Bar to Bar Spacing                                                            2mm
Fast Axis Divergence(FWHM)                                         38Deg
Slow Axis Divergence (FWHM)                                       12Deg
Polarization Mode                                                              TE
Slope Efficiency                                                                  ≥1.0W/A
Pulse Width                                                                         ≤400ms
Duty Cycle                                                                           ≤40%


Electrical
Operating Current Iop                                                        60A
Threshold Current Ith                                                         12A
Operating Voltage Vop                                                     19V
Power Conversion Efficiency                                           45%


Thermal
Operating Temperature (No Condensation)                   15~30℃
Storage Temperature (No Condensation)                       0-55℃



Warranty 18Months



Other Choices

Triple Wavelength 755nm 808nm 1064nm is available for your choice.

Pls contact us as below for more details.




Order Procedure

1. Contact us for more details by email.

2. We send PI to you for payment, payment term is T/T or Western Union.

3. Once payment is done, we will arrange production.

4. Delivery time is 1-4 weeks depends on different order qty and request.

5. After delivery, we will send you DHL UPS FedEx TNT tracking NO.

6. Sample is not free.



Remarks

Other models are available upon your choices,pls contact us freely.



Product Details

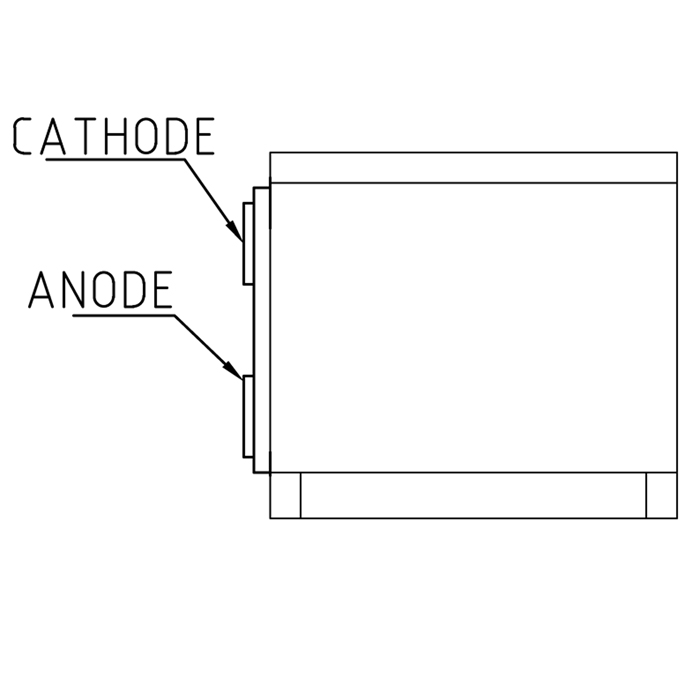

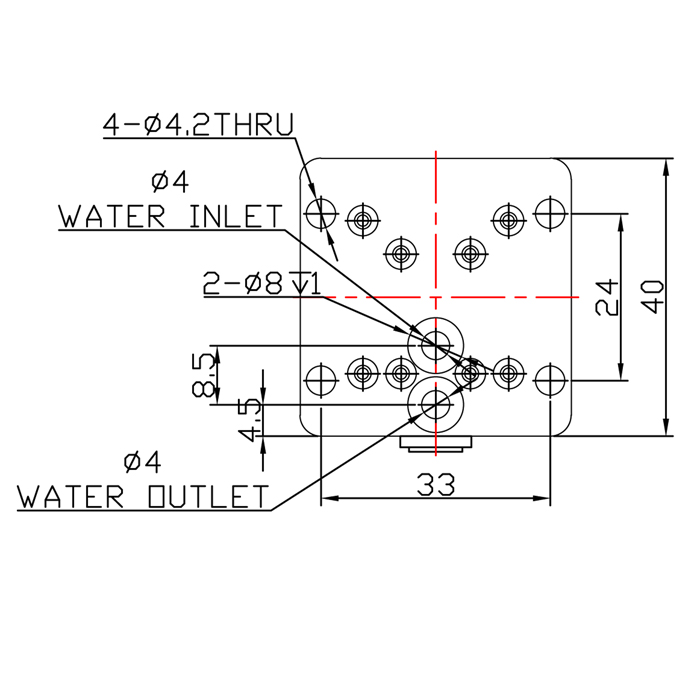

drawing 4.jpg


Brandnew Technology, one of the leading diode laser manufacturers and suppliers in China, has a professional factory which manufacturers high quality new 600w 808nm hair removal diode laser with 10bars and sells at competitive price. Welcome to wholesale our products made in China.
