Description

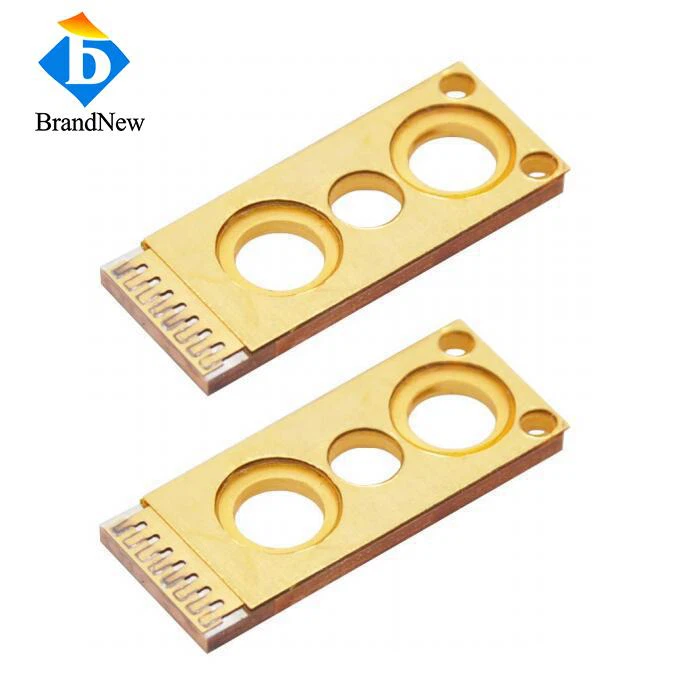

Micro-channel Water-cooled CW Single Bars Diode Laser
Features:
- Long Lifetime
- High Power
- Typical wavelength 808nm.915nm,940nm,980nm,1064nm
- 40w/bar,60w/bar,100w/bar
- Customize according to specific requirment
Applications:
- Hair remove
- Pumping
- Industry
- Scientific research
|
|
Specification:
Item NO:MC808DL100,MC9XXDL60,MC1064DL40
|
Optical Paremeter |
operation Mode | CW | |||
| Typical Wavelength | nm | 808 | 915/940/980 | 1064 | |
| Output Power/Bar | W | 50/100 | 60 | 40 | |
| Spectral Width | nm | ＜5 | ＜5 | ＜5 | |
| Wavelength&Temperature Ratio | nm/℃ | 0.28 | 0.28 | 0.28 | |
| Fast Axise Divergence(FWHM) | Deg | ＜30 | |||
| Slow Axise Divergence(FWHM) | Deg | ＜10 | |||
|
Electrical Parameter |
Threshold Current | A | ＜7/＜15/＜25 | ＜15 | ＜7 |
| Operating Current | A | ＜40/＜70/＜110 | ＜70 | ＜50 | |
| Operating Voltage/Bar | V | ＜2.0 | |||
|
Thermal Parameter |
Max.Inlet Pressure | psi | 65 | ||
| Cooling rate/Bar | l/min | ≥0.3 | |||
| cooling medium pasrticle size | um | ≤15 | |||
| cooling medium conductivity | us/cm | 5-10 | |||
| operating temp | ℃ | 15-35 | |||
| Storage Temp | ℃ | -10-60 | |||

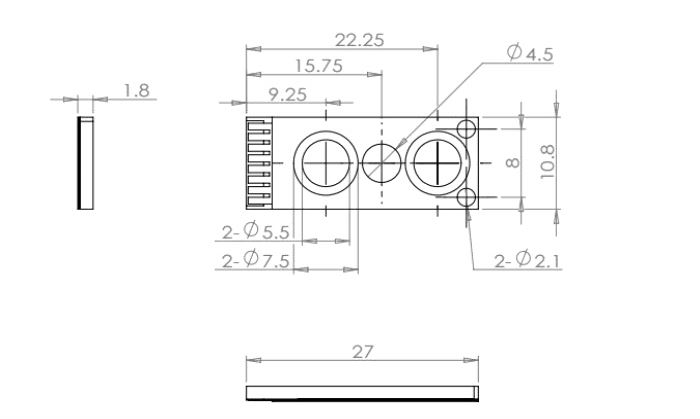

Drawing:
MCC can be used on these handles, and many salon hair removal instruments use such stacked arrays for their handles:
