Single Emitters









Single emitters Laser Diodes are available in the ultraviolet (UV), violet, blue, red, and IR wavelengths. The output power ranges from mWs on the single mode laser diodes, to watts in the multimode emitters and VCSELS. There are many different packages to choose from, including chip on submount COS, C-mount, F-mount, and various TO-can and HHL packages. Alternative wavelengths and customized packaging options can be developed to meet your unique requirements.





COS Laser Diode

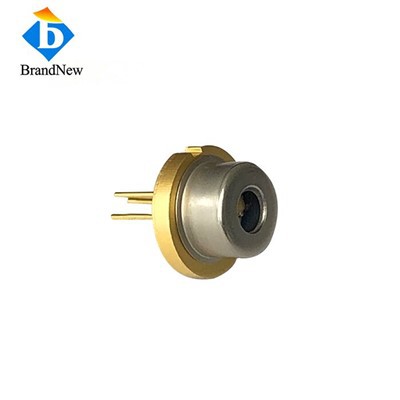

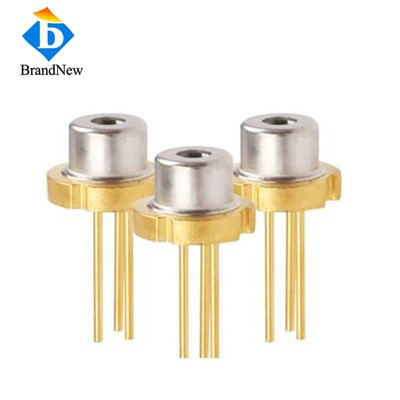

TO-CAN Laser Diode



C-mount Laser Diode



F-mount Laser Diode





‌The main difference between single emitter laser diode and single bar laser diode lies in the emission mode and beam characteristics. ‌

Emission mode ‌

Single emitter laser diode: This type of laser diode produces a single beam, which is usually used in applications that require high precision and high resolution. It has high beam quality, small beam diameter, small divergence angle, and strong focusing ability. ‌

Single bar laser diode: This type of laser diode produces multi beams, which is usually used in applications that require uniform heating of a large area. Its beam mode is complex, the beam quality is relatively low, but the beam uniformity is good. ‌

Beam characteristics ‌

Single emitter laser diode: The beam quality is extremely high, which is suitable for applications that require high precision and high resolution, such as cutting, welding, and marking in industrial manufacturing. ‌

Single bar laser diode: The beam uniformity is good, which is suitable for general applications that require beam quality uniformity and low cost, such as laser cutting, welding, etc. ‌

Application scenarios ‌

Single emitter laser diode: Widely used in applications that require high precision and high resolution, such as optical fiber communication systems, precision instrument manufacturing, etc. ‌

Single bar laser diode: Suitable for general applications that require uniform beam quality and low cost, such as short-distance communication, large-area heating, etc. ‌

In summary, there are significant differences in the emission mode and beam characteristics between single emitter laser diode and single bar laser diode, which determine their applicability in different application scenarios.





The package of single emitter laser diode mainly include the following:

‌TO package‌:

‌TO38 (3.8mm) package‌: This type of laser diode has a small size and is suitable for applications that require a small size.

‌TO18 (5.6mm) package‌: Slightly larger in size, suitable for applications that require medium power output.

‌TO5 (9mm) package‌: Larger in size, suitable for applications that require higher power output.

‌TO3 package‌: This package is also relatively common and is suitable for specific application requirements.

‌C-mount, F-mount package‌: These packages are suitable for specific optical systems and have different appearances and installation methods‌.

‌Power and volume relationship‌: Generally speaking, the larger the packaged volume, the greater the power of the laser diode. Therefore, when choosing a package, it is necessary to decide which package to use based on the specific application requirements‌.

These packages have their own characteristics and are suitable for different application scenarios and power requirements. Choosing the right package is crucial to ensuring the performance and stability of the laser diode.









Various packaging forms‌: TO laser diodes are available in a variety of packaging forms, such as TO38, TO18, TO5, and TO3. The larger the package size, the greater the power‌.

‌Wide power range‌: TO laser diodes range from low power to high power. Low-power laser diodes are usually used for power levels of 1 W or less, and the commonly used package is the TO-Can type, which is available in a 5.6 mm or 9 mm diameter base‌. For higher power laser diodes (>1 W), the TO-3 package is used‌.

‌Internal structure‌: TO laser diodes usually integrate a monitoring photodiode to monitor the output beam at the rear face of the laser diode to maintain a constant power level‌.

‌Wide application areas‌: TO laser diodes perform well in high-speed data communications, and their output modulation frequency can reach up to several gigahertz by modulating the drive current‌. In addition, they are widely used in fields such as lidar and sensors, because their miniaturization, low cost and high performance simplify system design and improve reliability.

‌Technical advantages‌: TO laser diodes have high coherence and monochromaticity, which makes them excel in holography and other applications that require high coherence‌. In addition, they also have high optical density and tiny spot size, which gives them significant advantages in focusing and processing materials.

These characteristics make TO laser diodes excel in a variety of applications, from low-power communication equipment to high-power industrial applications, with unique advantages and application scenarios.





The main features of F-Mount laser diodes include their optical properties, packaging, application scenarios, and comparison with other packaging. ‌

Optical properties

F-Mount laser diodes have high coherence and single wavelength characteristics, which enable their output to be focused to a diffraction-limited spot size. The size of the spot depends on the laser wavelength. The shorter the wavelength, the smaller the spot, which is particularly important in high-density storage. ‌



Packaging

F-Mount laser diodes are usually packaged in F-Mount. This packaging is suitable for a variety of applications, especially those that require high-precision alignment. F-Mount packages usually include a threaded interface for easy docking with optical systems. ‌



Application scenarios

F-Mount laser diodes are suitable for applications that require high-precision alignment and high-power output. Due to their high coherence and single wavelength characteristics, they are widely used in optical measurement, laser processing, scientific research instruments, and other fields. ‌



Comparison with other packaging forms

Compared with laser diodes in other packaging forms, F-Mount laser diodes have advantages in optical performance and installation convenience. For example, compared with TO-Can packaging, F-Mount packaging provides better alignment accuracy and more stable output power. In addition, F-Mount packaging usually contains more adjustment mechanisms to adapt to different application requirements‌.

In summary, F-Mount laser diodes perform well in the optical and industrial fields with their high coherence, single wavelength characteristics, precise packaging form and wide range of application scenarios.





‌ The main features of C-Mount laser diodes include high power handling capability, suitable for high-power laser diodes, complex structure, including components such as lenses, focus adjustment and accessories‌‌.



Detailed features

‌High power handling capability‌: The C-Mount package design can withstand higher power and is suitable for application scenarios that require high power output.

‌Complex structure‌: The C-Mount package contains components such as lenses, focus adjustment and accessories, which makes its structure relatively complex, but provides more functions and flexibility.

‌Suitable for high-power laser diodes‌: Due to its high power handling capability, the C-Mount package is particularly suitable for high-power laser diodes and can meet the needs of high-power applications.



Application scenarios

Due to its high power handling capability and complex structural design, C-Mount laser diodes are widely used in scenarios that require high power output, such as industrial processing, medical equipment, scientific research instruments, etc.‌

















Single emitter laser diode is a semiconductor device that converts electrical energy directly into laser light. It has the characteristics of small size, high efficiency and fast response speed, and is widely used in many fields. ‌

Fiber-optic communication

Single emitter laser diode plays a core role in fiber-optic communication because it can emit a monochromatic and highly coherent laser beam, which is suitable for long-distance and high-speed data transmission. The main applications include the transmitter in the fiber-optic communication link of data centers and telecommunications networks, and the optical signal transmission in fiber-to-the-home (FTTH) technology‌.

Laser printing and scanning

Single emitter laser diode is an important component of laser printers and barcode scanners. In laser printers, the laser beam scans the imaging drum to generate an electrostatic image, which attracts toner to print on paper; in barcode scanners, the laser scans the barcode to decode information, which is widely used in retail, logistics and industrial automation fields‌.

Medical equipment

In the medical field, single emitter laser diode is used in ophthalmic surgery, dental treatment, and skin treatment, such as vision correction surgery, scar removal, etc. In addition, they are also used for biosensing to detect biological indicators such as blood sugar and blood oxygen.

Industrial processing

Single emitter laser diode is used for precise cutting, welding, punching, and engraving in industrial processing. Compared with traditional mechanical methods, laser processing has higher precision and efficiency, and is suitable for fine processing of materials such as metals and plastics.





The average service life of the single emitter laser diode exceeds 10,000 hours‌, and the service life of some high-end products can even reach more than 20,000 hours. This number is calculated based on the time point when the output optical power first declines under continuous use‌.

The main factors that affect the life of laser diodes include materials and processes, usage environment, etc. High-quality materials and excellent manufacturing processes can significantly increase the life of a laser diode, while high temperature, humidity, excessive current, excessive power, and long-term continuous operation may shorten the life of a laser diode‌.



In order to extend the life of the laser diode, the following measures can be taken:

Control current and power‌ to avoid exceeding the laser diode's rating.

‌Keep the operating temperature stable‌ and avoid overheating or low temperatures.

Prevent moisture absorption‌, exposure to strong light or excessive vibration.

By comprehensively considering materials, processes, usage environment and other factors, and adopting reasonable use and maintenance methods, the service life and working efficiency of laser diodes can be effectively extended‌.







Support applications in solid-state laser pumping, heat treating, defense, medicine, and scientific research with these unique, high power single emitters sources. Enable MOPA and external cavity diode laser applications by using high-power single-mode tapered amplifiers. Use multi-mode single emitters for solid-state laser pumping, defense, and medicine.
