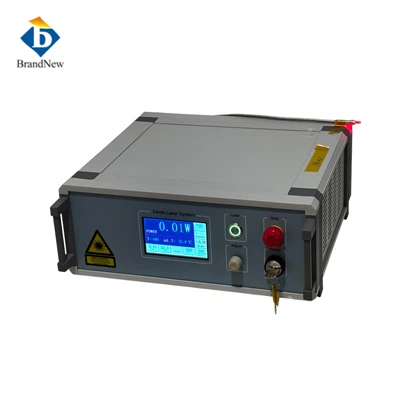

Fiber Coupled





Brandnew delivers fiber coupled laser diodes employing professional coupling technology, that enjoy multiple advantages, e.g., compact design, stable output power, high power, high efficiency and convenient packaging. Precision machining and careful alignment of all optical elements inside the module allows the beam to be coupled into an optical fiber. Available over a broad range of wavelengths (375nm-1940m), with output powers from milliWatt to kilowatts out of fiber diameters from 50 µm and up. Numerous features including line narrowing and wavelength stabilization configurations as well as monitoring options.





The light exiting the fiber has a circular and uniform intensity profile.

It allows the laser diodes and heat sink to be located remotely from where the laser light is used.

Defective fiber-coupled diode lasers can easily be replaced without changing the alignment of the device where the light is used.

Fiber-coupled devices can be easily combined with other fiber-optic components.

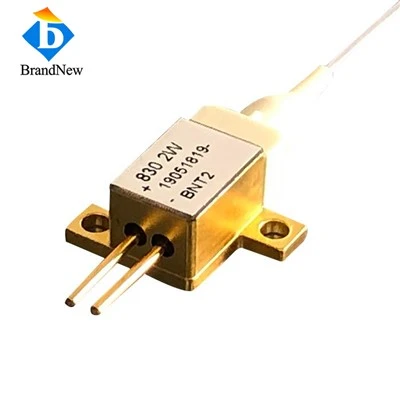

Multimode Fiber Coupled Laser Diode



Stabilized Wavelength Fiber Coupled Laser Diode





Single Mode Fiber Coupled Laser Diode









‌Fiber coupled laser diode is a technical product that couples a laser diode to an optical fiber. It is used to couple laser energy from the laser diode to the optical fiber for transmission. This technology combines the miniaturization and high efficiency of laser diode with the flexibility and long-distance transmission capabilities of optical fibers, breaking the limitations of traditional laser use.

The working principle of fiber coupled laser diode mainly involves laser generation, fiber transmission, coupling mechanism, and beam quality control. A laser diode is a device with a semiconductor material structure that achieves light amplification under appropriate external conditions (such as current injection), and ultimately outputs high-brightness, high-coherence laser light. As a medium for laser transmission, optical fiber has significant advantages such as low loss, high transmittance, and resistance to electromagnetic interference. The lens can precisely focus the beam from the laser diode onto the core of the optical fiber, thereby achieving efficient transmission of optical signals.

Fiber coupled laser diode is widely used in cutting, pumping, beauty, scientific research, LDI exposure and other fields. It can transmit the laser to a distant place for use, making the end of the light source lighter and more suitable for handheld use. In addition, fiber coupled laser diode or modules can efficiently excite working materials and improve work efficiency without taking up too much internal space。





‌The reason the laser diode must be collimated before fiber coupling is to improve coupling efficiency and beam quality. Collimation refers to adjusting the beam emitted by the laser diode to a smaller divergence angle by using a fiber collimator for better coupling into the fiber. Collimation can significantly improve coupling efficiency, reduce light energy loss, and improve beam quality.

The reasons for collimating laser diode mainly include the following aspects:

Improve coupling efficiency: Collimation can ensure that the beam emitted by the laser diode is better aligned with the receiving end face of the fiber, thereby improving coupling efficiency. The improvement in coupling efficiency means that more light energy is effectively transmitted into the optical fiber, reducing energy loss.

Improve beam quality: The collimated beam has a smaller divergence angle, which means that the beam can maintain better directionality and focus during transmission, thus improving the quality of the beam. This is important for applications that require high-precision beams.

Reduce transmission loss: The collimated beam can more effectively utilize the transmission capacity of the optical fiber, reducing transmission loss caused by beam divergence. This is especially important for long-distance transmission to ensure signal stability and reliability.

Specifically, the collimation process is typically accomplished through the use of fiber collimators, a technique that aligns the end face of an optical fiber with a collimator. The function of the collimator is to adjust the emission end face of the optical fiber to be consistent with the beam direction of the laser diode, ensuring that the beam can enter the optical fiber with the smallest divergence angle. This process requires precise adjustment of the position and angle of the fiber collimator to ensure optimal beam alignment and coupling efficiency.







In terms of transmission distance and anti-interference ability, the transmission distance of free space laser diode output is generally short, limited by atmospheric conditions and the sensitivity of the receiver, but it can theoretically achieve very high bandwidth. The transmission distance of fiber coupled laser diode output can reach hundreds of kilometers or even farther, depending on the quality of the optical fiber and the signal amplification technology. In addition, optical fiber communication has strong anti-interference ability and stable transmission.

In terms of application scenarios, free space laser diode output is mainly used in special environments such as satellite communication, deep space exploration, and drone communication. Fiber coupled laser diode output is widely used in fixed or mobile communication networks such as telecommunications networks, the Internet, and cable TV.





The key to extending the fiber-coupled laser diode's life is proper use and maintenance. Fiber-coupled laser diodes are a technical product that couples laser energy from a laser diode into an optical fiber. Their life is affected by many factors, including working environment, temperature control, and protective measures during use.

First of all, maintaining a suitable working environment is an important factor in extending the life of fiber coupled laser diode. Laser diode is very sensitive to temperature, and excessively high temperatures will accelerate device aging, so a chiller is needed to control the temperature. After turning on the chiller, ensure that the water flow is smooth and free of bubbles to avoid damage to the laser tube caused by bubbles.

Secondly, regular inspection and maintenance of the equipment are also necessary measures. Including checking whether the water flow and water protection are working properly, whether there is debris around the high-voltage connector or too close to the metal, and avoiding freezing of cooling water in a low-temperature environment, these measures can effectively extend the service life of the laser tube.

In addition, reasonable use and avoiding excessive stress are also the key to extending the life of fiber coupled laser diode. During use, care should be taken not to exceed the maximum power and current specified by the equipment to avoid premature aging of the device due to excessive stress.

Finally, following the correct installation and operating procedures is also the basis for ensuring the long-term stable operation of fiber coupled laser diode. Correct installation can reduce damage caused by improper operation, while following the operating procedures can avoid equipment failures caused by misoperation.











The main difference between single mode fiber coupled laser diode and multimode fiber coupled laser diode is the different types of optical fibers they support. Single mode fiber coupled laser diode is suitable for single mode optical fibers, while multimode fiber coupled laser diode is suitable for multimode optical fibers.



The characteristics of single mode fiber coupled laser diodes include:

Fiber type adaptability: Single mode fiber coupled laser diode is specially designed for single mode optical fibers, which have a small mode field diameter and core diameter, usually between 8 and 10 microns, and can transmit a single optical mode, with large transmission bandwidth and long transmission distance.

Transmission characteristics: Single mode fiber coupled laser diode can maintain the mode integrity of optical signals and reduce transmission losses, and are suitable for long-distance, high-speed optical fiber communication systems.

Application scenarios: Due to the excellent transmission performance of Single mode fiber coupled laser diode, they are widely used in optical measurement and testing fields such as metropolitan area networks and backbone networks that require high precision and high stability.



The characteristics of multimode fiber coupled laser diode include:

Fiber type adaptability: Multimode fiber coupled laser diode is suitable for multimode fiber, which has a larger core diameter, usually between 50 and 400 microns, and can transmit multiple light modes.

Transmission characteristics: Although multimode fiber coupled laser diode has low manufacturing cost and is easy to couple, it is suitable for short-distance, low-speed fiber communication systems. However, due to the transmission of multiple light modes, problems such as mode dispersion may occur, resulting in a decrease in signal quality.

Application scenarios: Multimode fiber coupled laser diode is more suitable for short-distance, low-speed fiber communication systems, such as local area networks.

In summary, the main difference between single mode fiber coupled laser diode and multimode fiber coupled laser diode is that they support different types of optical fibers. Single mode fiber coupled laser diode is suitable for long-distance, high-speed fiber communication systems, while multimode fiber coupled laser diode is suitable for short-distance, low-speed fiber communication systems.





The wavelength stabilized technology of fiber coupled laser diode is a technology that ensures that the wavelength of the light emitted by the laser diode remains stable. ‌ Through wavelength locking, the output wavelength of the laser can be ensured to remain unchanged within a specific range and is not affected by environmental factors such as temperature changes.

The wavelength stabilized technology of fiber coupled laser diode mainly relies on volume Bragg grating (VBG) and other related technologies. VBG reduces the sensitivity to ambient temperature and vibration through reflective volume Bragg grating (R-VBG), thereby achieving wavelength stability and linewidth compression of high-power semiconductor lasers. This technology selects the feedback mechanism so that the light wave emitted by each unit in the laser array external cavity is selectively fed back to the adjacent unit, thereby achieving phase locking of the laser array external cavity, greatly improving the quality and stability of the beam output. ‌Wavelength stabilized is widely used, especially in applications that require high precision and stability. For example, in laser processing, medical applications, and communication systems, wavelength stabilized laser diode can provide more reliable and consistent performance, ensuring stable operation of the system and high-quality output. In addition, wavelength stabilized technology is also used in optical fiber communication systems to ensure the stability and reliability of signal transmission.





























Brandnew Technology, one of the leading diode laser manufacturers and suppliers in China, has a professional factory which manufacturers high quality fiber coupled diode laser, fiber diode, fiber coupled laser, multimode fiber laser, single mode fiber laser and sells at competitive price. Welcome to wholesale our products made in China.
