Description

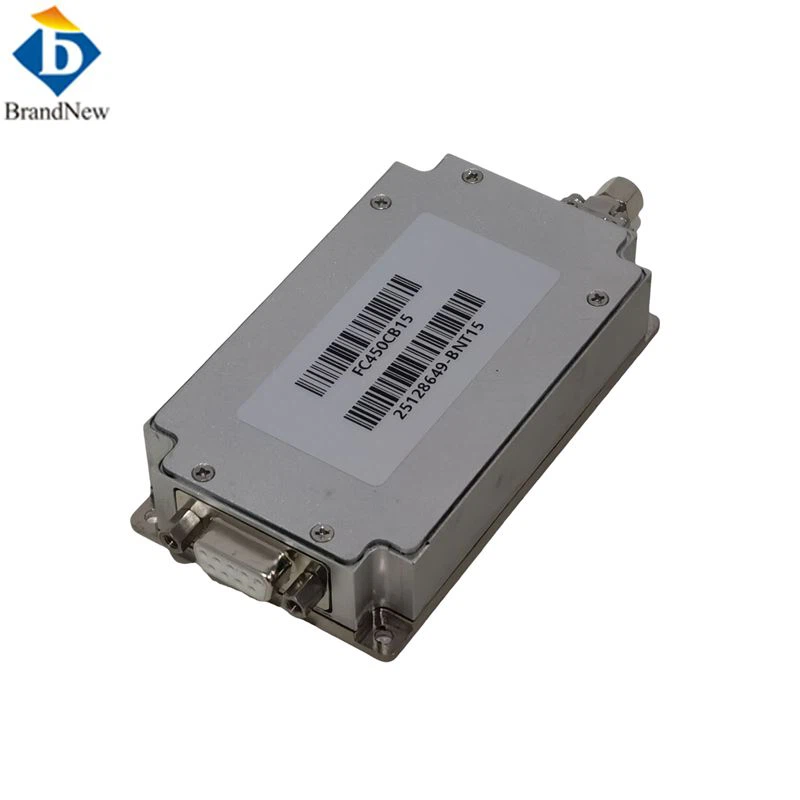

15W 520nm Fiber Coupled Laser Diode
Feature and Application
- 15W stable CW output, 520nm green wavelength
- 200μm fiber core
- standard SMA905 connector
- Industrial & Scientific Pumping Source: Suitable for pumping high-power solid-state lasers, tunable lasers, Raman lasers and high-power fiber amplifiers.
- Industrial Processing: Used for precision micro-marking and micro-engraving of delicate materials, small electronic components and precision parts.
- Biological Fluorescence: Ideal for biological fluorescence excitation, cell imaging, DNA detection and laboratory biological analysis.
- Long-distance Sensing: Compatible with long-distance optical sensing systems, realizing accurate signal transmission and detection.
Data Sheet
Item No: FC520DZ15
| Optical | |
|
Center Wavelength |
520±10nm |
|
Output Power |
15W |
| Working Mode | CW |
|
Fiber |
|
|
Fiber Core |
200um |
|
Fiber Numerical Aperture |
0.22NA |
| Fiber Length | 1m |
|
Fiber Connector |
SMA905 |
|
Electrical |
|
| Operating Current Iop | 1.6A |
| Threshold Current Ith | 0.3A |
| Operating Voltage Vop | 32V*2 |
| Thermal | |
|
Test Temp. |
25℃ |
|
Storage Temp. |
-30-70℃ |
Dimension:
