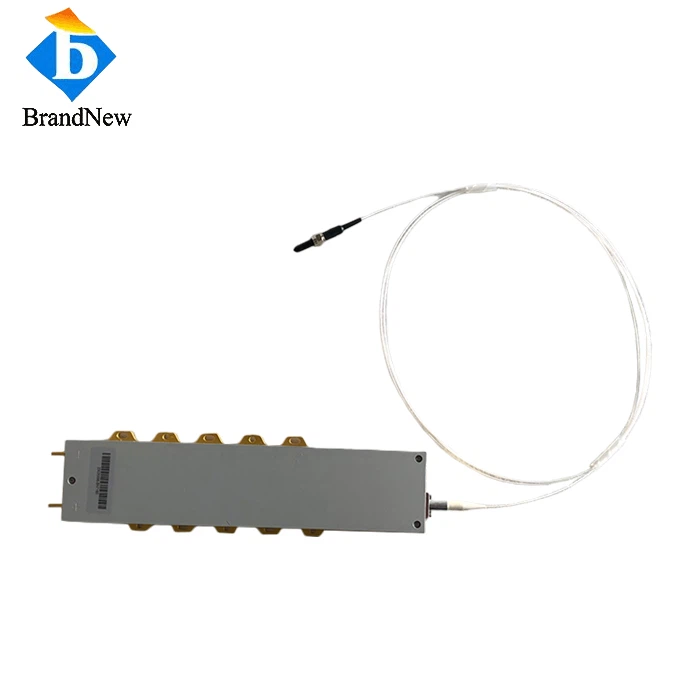

1064nm 400W Fiber Coupled diode laser
Feature:
- 1064nm wavelength
- Spectrum Width FWHM: 5nm
- Fiber Connector: Bare end
Applications:
- Industrial engraving
- Industrial manufacturing
- Scientific experimentation
Specifications:
Item No.:FC1064DL400
| Optical | Typical Value |
| Center Wavelength | 1064nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 400W |
| Spectrum Width FWHM | 5nm |
| Fiber | |
| Fiber Core |
200um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Jacket Diameter | 0.9mm |
| Fiber Connector | Bare end |
| Electrical | |
| Threshold Current Ith | 2A |
| Operating Current Lop | 18A |
| Operating Voltage Vop | 50V |
| Thermal | |
| Storage Temperature | -30~70℃ |
| Test Temperature | 25℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |
Drawing:
This product delivers in 200 μm core fiber, using a new generation of high power proprietary chips optimized to maintain reliability at high power.
The multimode pump module is bright, small, and has simplified thermal management. The diodes operate as distributed heat sources, allowing for a water-cooled architecture with predictable high reliability.
