Description

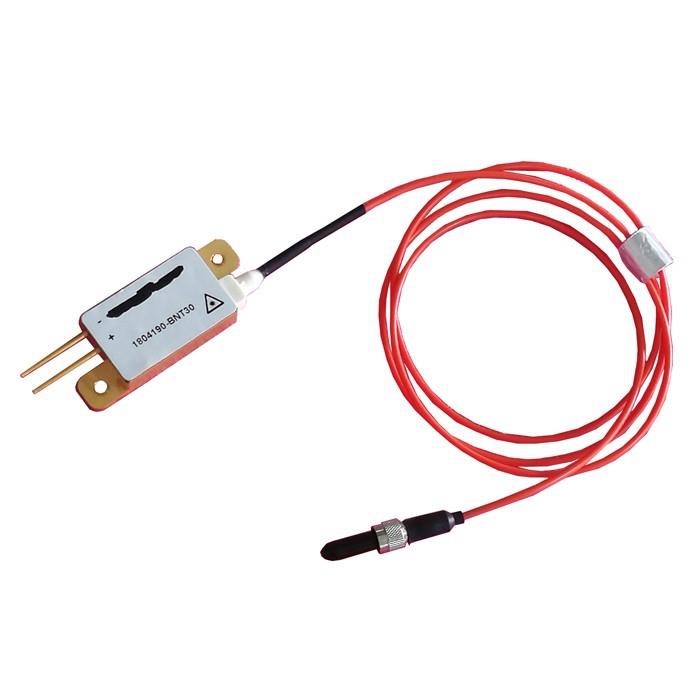

5W 830nm Fiber Coupled Diode Laser
Feature:
830nm special for printing application
62.5μm aperture
1m fiber length
High brightness
Cost effective package
Simplified thermal management
Data sheet
| Optical | |
| Center Wavelength | 830nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 5W |
| Spectral Width FWHM | 4nm |
| Slope Efficiency | 2.5W/A |
| Fiber | |
| Fiber Bend Radius | >30mm |
| Fiber Core/Cladding/Buffer Diameter | 62.5um/125um/250um |
| Fiber Numerical Aperture(90% Power ) | 0.18NA |
| Fiber Length | 1m |
| Fiber Connector | SMA905 |
| Electrical | |
| Operating Current Iop | 2.2A |
| Threshold Current Ith | 0.2A |
| Operating Voltage Vop | 5.5V |
| Power Conversion Efficiency | 45% |
| Thermal | |
| Operating Temperature | 15~55℃ |
| Storage Temperature | -30-70℃ |
| Wavelength Temperature Coefficient | ~0.3nm/℃ |
Drawing
FAQ:
What’s package?
Original Carton Package. Or as customers' requirement.
Could you do OEM(design and manufacture lasers for customer)?
Yes, we we have professional R&D team including software, hardware, electronics and designers 3D department and have enough ability to manufacture lasers completely according to customer's requirements.
