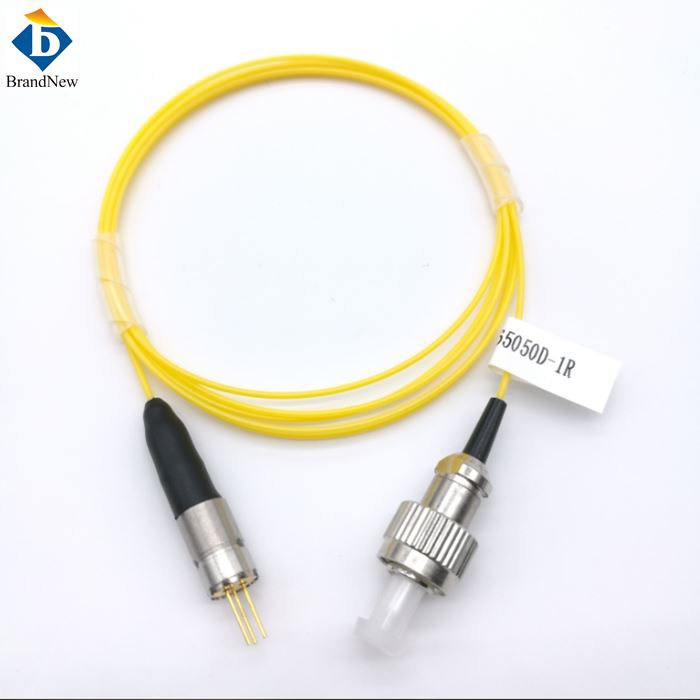

1650nm 2mW 5mW Single Mode Laser Diode
Overview
Feature:
CW or pulsed operation.
Low threshold current and high slope efficiency.
Built-in monitor photodiode, thermo-electric cooler and thermistor.
Single mode fiber pigtail (Coaxial or 8-Pin).
Optional FC/SMA connectors.
High reliability and Long operation life.
Note:
Absolute Maximum Ratings may be applied to the Device for short period of time only. Exposure to maximum ratings for extended period of time or exposure above one or more max ratings may cause damage or affect the reliability of the Device.
Data sheet
Item No.: FC1650SM0005
Item Name: 5mW 1650nm Fiber Coupled Diode Laser
|
Optical |
|
|
Center Wavelength |
1650nm |
|
Wavelength Tolerance |
±10nm |
|
Output Power |
5mW |
|
Spectral Width FWHM |
1nm |
|
Fiber |
|
|
Fiber Core Diameter |
9um |
|
Fiber Numerical Aperture |
0.14NA |
|
Fiber Length |
1m |
|
Fiber Connector |
FC/SMA |
|
Electrical |
|
|
Operating Current Iop |
90mA |
|
Threshold Current Ith |
35mA |
|
Operating Voltage Vop |
0.9V |
|
Thermal |
|
|
Operating Temperature |
0~60℃ |
|
Storage Temperature |
-40-70℃ |
|
Temperature Coefficient |
~0.01nm/℃ |
Drawing
![~JKH0FE}1_S1]9A(5_`CG_V](/Content/upload/202098745/202006051410488831820.png "product-1-1")
