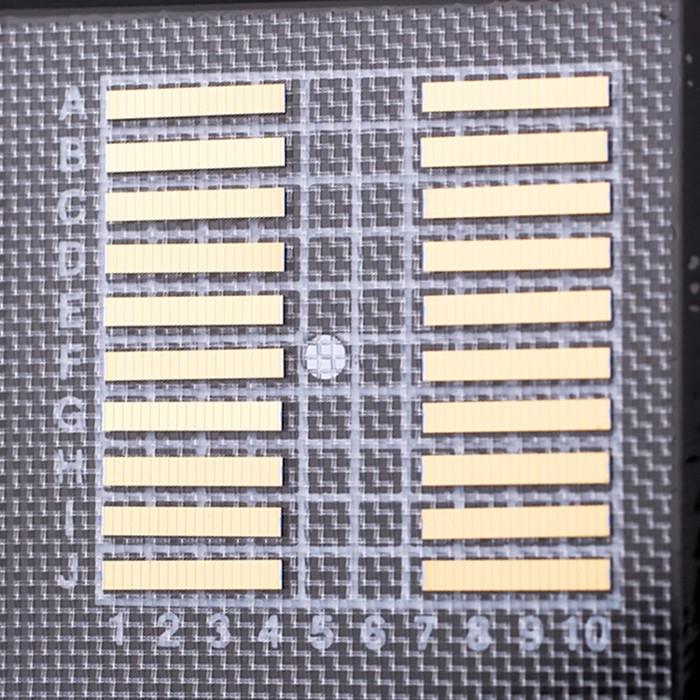

10W 20W 976nm Bare Laser Chip Unmounted Laser Bar

10W 20W 976nm Bare Laser Chip Unmounted Laser Bar

Feature:


Wavelength: 976nm
Output power: 10W,20W
Operation mode: CW








Application:

Industry: Semiconductors for high-power diode lasers in direct material processing, for heating or lighting. Semiconductors as pumping sources for fiber and solid-state lasers. Use in printing technology.
Medicine: Esthetics, dermatology and surgery.

Item No.: LC976B10


Item Name: 10W 976nm Bare Laser Chip


Optical
Wavelength λ 973~979nm
Output Power10~12W
Working Mode CW
Spectral Width FWHM ≤5nm
Emitter Width 95um
Cavity Width 390~410um
Cavity Thickness 95~120um
Cavity Length 3990~4010um
Fast Axis Divergence(FWHM) 29Deg
Slow Axis Divergence (FWHM) 9Deg
Spectral Width FWHM 4nm
Polarization Mode TE
Slope Efficiency ≥0.95W/A


Electrical
Operating Current Iop 10.8~12A
Threshold Current Ith 0.7~1.0A
Operating Voltage Vop 1.75~1.95V


Thermal
Operating Temperature 25℃
Wavelength Temperature Coefficient ～0.3nm/℃




Remarks

Other models are available upon your choices,pls contact us freely
