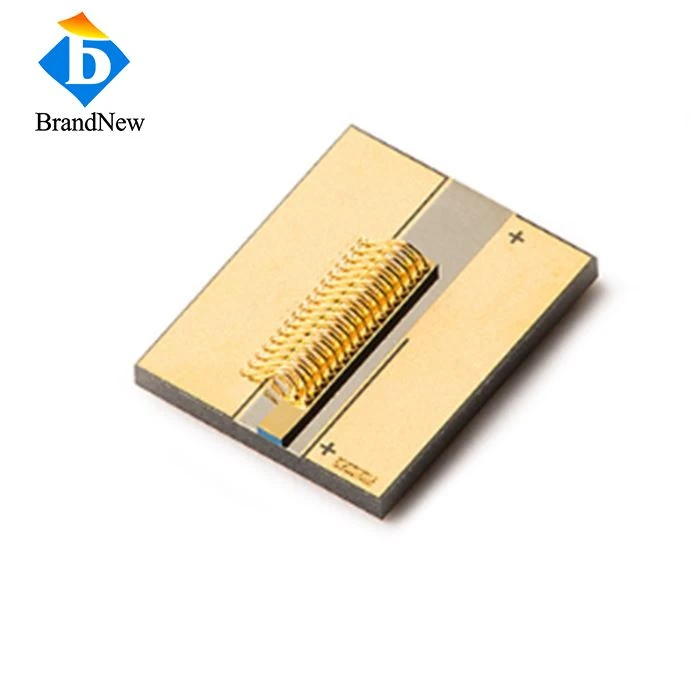

High Power 22W 915nm COS Laser Diode
Like the C-mount, the CoS (chip on submount) has the laser exposed without protection to the chip or its bond wires. The CoS is also highly desired when other optical components need to be in very close proximity to the front facet. The AlN submout is an excellent conductor of heat but the CoS will require cooling.
Key Parameters:
Chip on submount design and P Down sealed package
AuSn bonding RoHS compliance
Other wavelengths 808nm,915nm,975nm optional
Long lifetime High reliability
Data sheet:
Item No.: COS915DL22
| Optical | |
| Center Wavelength | 915nm |
| Output Power | 22W |
| Spectral Width FWHM | 5nm |
| Slope Efficiency | 1.0W/A |
| Electrical | |
| Operating Current Iop | 26A |
| Threshold Current Ith | 1.5A |
| Operating Voltage Vop | 1.8V |
| Power Conversion Efficiency | 50% |
| Thermal | |
| Operating Temperature | 15-55℃ |
| Storage Temperature | 0~70℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |
Package Drawing:
