Description

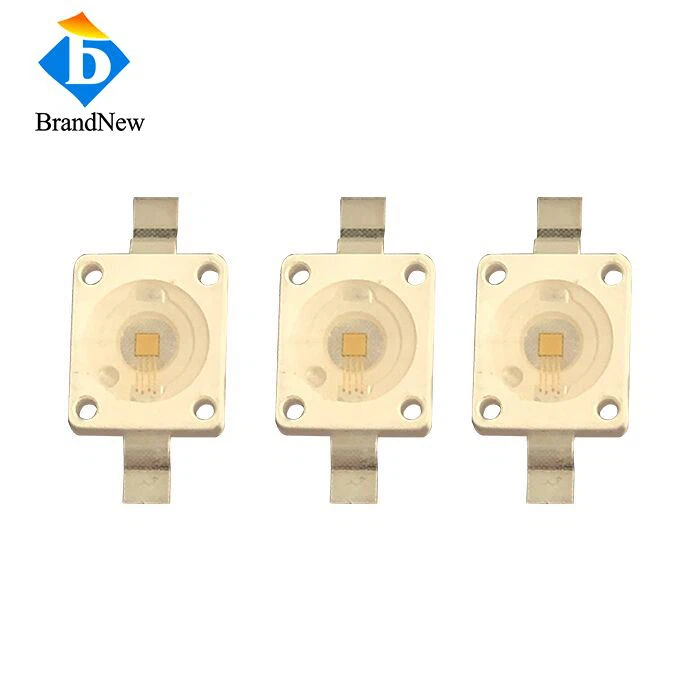

200mW 940nm VCSEL Diode
Main features:
940nm Multimode VCSEL
High efficiency, 25%@25℃
Oxide Isolation Technology
More than 39 lightening holes array
Modulation bandwidth>100Mbps
Relatively small emission area
Applications:
3D Imaging
Gesture recognition
Laser illumination
Medical application
Broadband access network
Military Application
Specifications:
|
Parameters |
Typ. |
|
Pulse Optical Power |
200mW |
|
Threshold Current |
0.05A |
| Emission Area |
226*215um |
|
Peak Wavelength |
940nm |
|
Laser Forward Voltage |
2.4V |
|
Beam Angle |
20Degrees |
|
Wavelength Shift |
0.07nm/℃ |
|
Case Operating Temp |
-40~85℃ |
|
Storage Temp |
-40~80℃ |
Package drawing:
