2mW 660nm Single Emitter VCSEL Die
The vertical-cavity surface-emitting laser, is a type of semiconductor laser diode with laser beam emission perpendicular from the top surface, contrary to conventional edge-emitting semiconductor lasers (also in-plane lasers) which emit from surfaces formed by cleaving the individual chip out of a wafer. VCSELs are used in various laser products, including computer mice, fiber optic communications, laser printers, Face ID, and smartglasses.
Feature
2mW output power at 660nm center wavelength
High quality with high efficiency
Over 10000hours, perfect working performance
Application
Sensing light source
Photoelectric sensors
Optical encoders
3D sensing
3D imaging, including Time of Flight, Structure light, Iris/Facial recognition, etc.
Date sheet
Item Number: VC660SE2
| Optical | |
| Center Wavelength | 660nm |
| Working Mode | QCW |
| Output Power | 2mW |

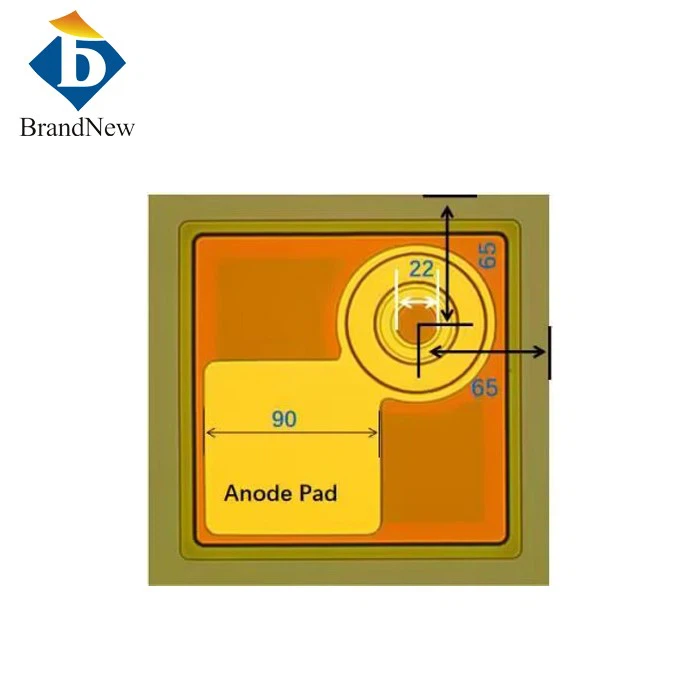

| Emitter Diameter | 22um |
| Chip Width | 200um |
| Chip Length | 200um |
| Chip Thickness | 130um |
| Divergence(FWHM) | 20Deg |
| Slope Efficiency | 0.35W/A |
| Electrical | |
| Operating Current Lop | 10mA |
| Threshold Current Lth | 3.2mA |
| Operating Voltage Vop | 2.5V |
| Thermal | |
| Operating Temp. | 25℃ |
