Description

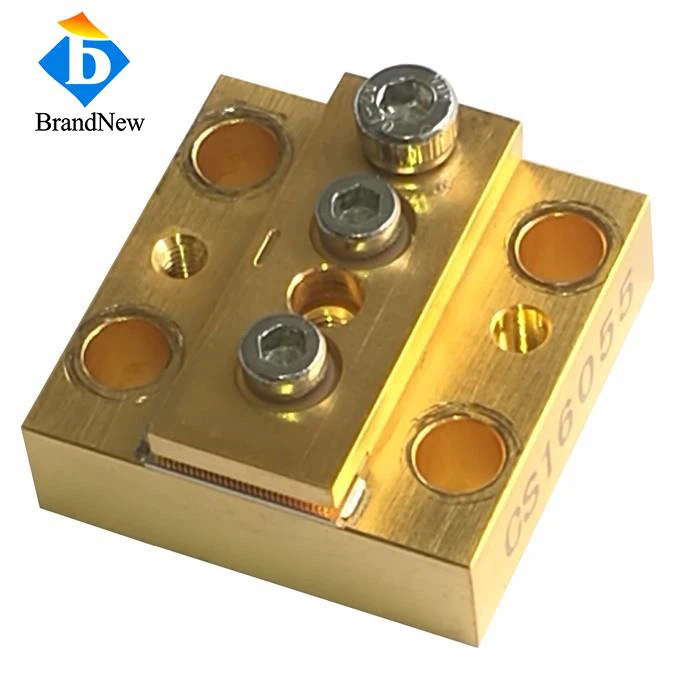

New Developed 80W 1064nm CS Laser Diode
Brandnew provides high quality CS-Mount laser diode arrays (laser diode bars). These CS-Mount laser diode bars can be used for solid-state pumping or infrared treatment.
Wavelength: 808nm, 915nm, 940nm, 976-980nm,1064nm
Output Power: 20W, 40W, 60W,80W CW
Solder: Indium / AuSn
Heatsink: Cu / WCu90 / WCu85
Fast Axis Can Be Collimated According to Request.

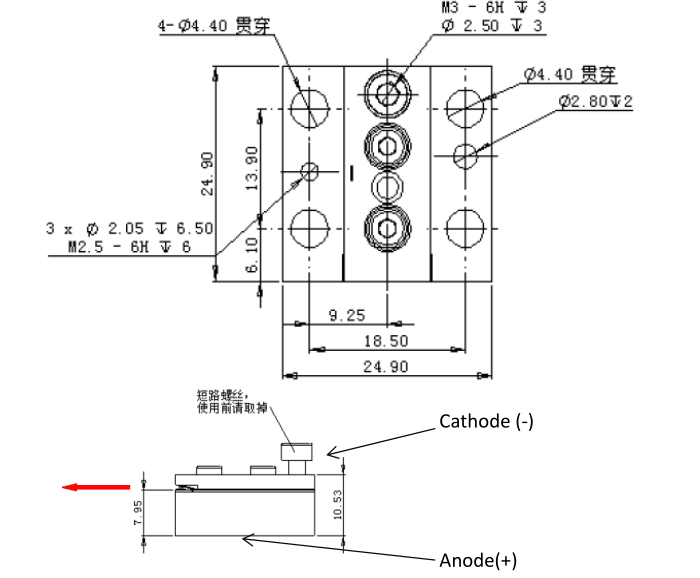

Drawing
![FN]NH[XFZVC%7RT7FUJOGFT](/Content/upload/201998745/201907231522471807113.png)
Data sheet
Item No.: CC1064DL80
| Optical | |
| Center Wavelength | 1064nm |
| Wavelength Tolerance | ±5nm |
| Output Power | 80W |
| Working Mode | CW |
| Electrical | |
| Operating Current Iop | 88A |
| Threshold Current Ith | 5A |
| Operating Voltage Vop | 1.5~2V |
| Power Conversion Efficiency | 60% |
| Thermal | |
| Operating Temperature | 15~30℃ |
| Storage Temperature | 0-55℃ |
| Temperature Coefficient | ~0.3nm/℃ |
