100mW 532nm Green Laser Diode

Description

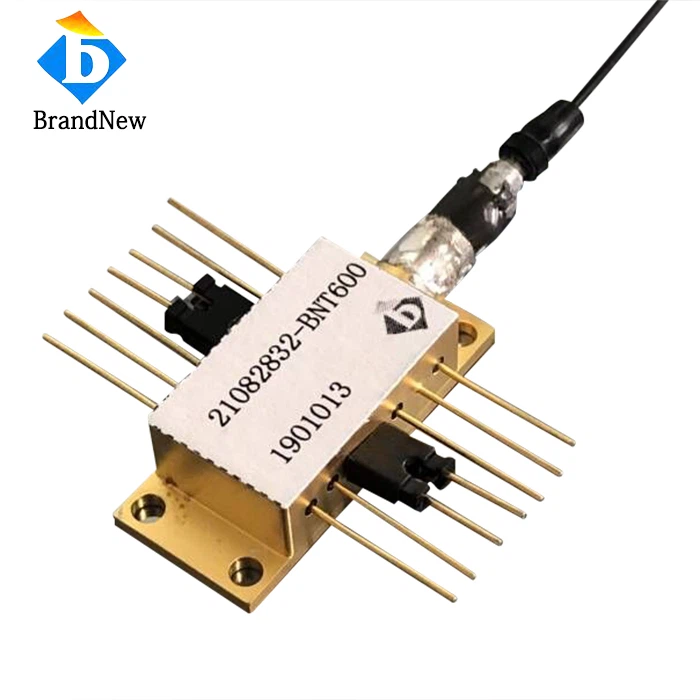

Presenting a cutting-edge range of laser diodes encapsulated in an industry-standard 14-pin butterfly package, these advanced devices redefine precision and reliability in optical technology. Each laser diode is equipped with a high-performance 105µm multi-mode fiber pigtail, skillfully terminated with an FC/PC connector, ensuring seamless integration into various optical systems.

The laser package goes beyond conventional designs by seamlessly integrating a thermo-electric cooler with a 10 kΩ thermistor, enabling precise temperature control for enhanced stability and efficiency. Additionally, an internal monitor photodiode further contributes to the laser's adaptability and performance monitoring capabilities.

Embracing industry standards, these laser diodes boast a Type-1 pinout, facilitating straightforward integration into existing setups and systems. The electrical configuration of the package is engineered to be electrically floating relative to ground. This unique feature provides unparalleled flexibility in both mounting options and laser control, making it a versatile solution for diverse applications.

Feature

532nm visible green wavelength

100mW stable low-power output

Butterfly package paired design, ensuring low insertion loss



Application

1.Optical Alignment & Positioning: Used in industrial machinery calibration, laser levelers, and precision instrument alignment systems for clear visual guidance

2.Biomedical Imaging: Applied in fluorescence microscopy, flow cytometry, and in-vitro diagnostic equipment, where the green wavelength matches common fluorophore excitation requirements

3.Optical Sensing & Metrology: Core light source for fiber optic gyroscopes, interferometers, and micro-displacement measurement systems

Specification

Laser Size
