Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 10w 445nm 450nm fiber diode laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

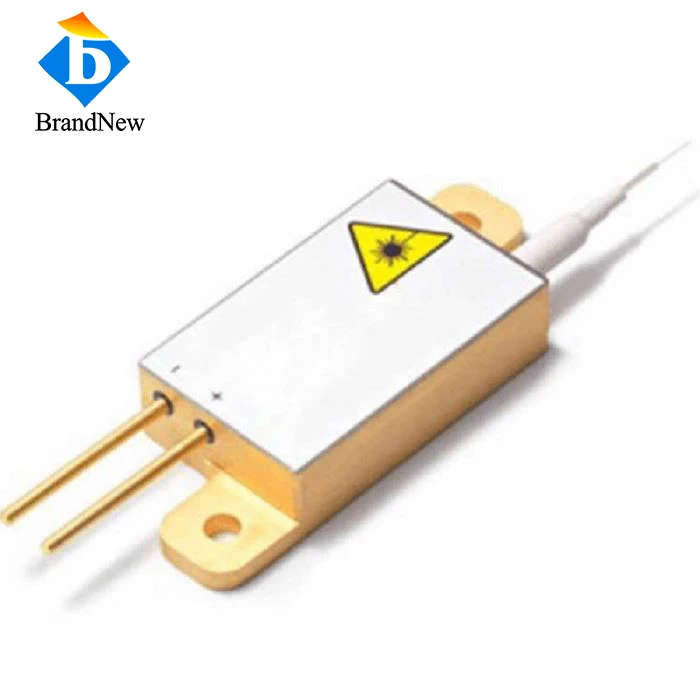

10W 445nm 450nm Fiber Diode Laser
Features:
- 450nm blue visible band, CW stable 10W power output
- 105μm core multimode fiber, high coupling efficiency
- Excellent beam homogeneity, low power fluctuation
Applications:
- 3D Dynamic Scanning & Additive Manufacturing: Core curing light source for resin SLA 3D printers; 3D dynamic galvanometer scanning exposure molding system
- Laser Welding & Plastic Bonding: Transparent plastic laser welding, composite material bonding, adhesive & resin curing; precision plastic component welding for electronics
- Vision Scanning & Industrial Inspection: High-brightness blue auxiliary light source for machine vision scanning; high-definition contour detection of dark
This 10W 450nm CW fiber-coupled laser diode delivers stable continuous blue light output, matched with 105μm multimode fiber for flexible energy transmission. With outstanding heat dissipation and low light loss, it is a high-brightness blue light source with wide compatibility for collimators and laser processing heads. Widely used in resin 3D printing photocuring, plastic laser welding, industrial marking, mold cleaning and machine vision inspection equipment.
Data Sheet
Item No: FC450DL10
| Optical | Typical Value |
| Center Wavelength | 450nm |
| Wavelength Tolerance | ±15nm |
| Output Power | 10W |
| Working Mode | CW |
| Fiber | |
| Fiber Core | 105um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Connector | SMA905 |
| Electrical | |
| Operating Current Iop | 3.2A |
| Threshold Current Ith | 0.3A |
| Operating Voltage Vop | 9V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
Drawing:
Why Partner with Hangzhou Brandnew Technology Co., Ltd.?
"By working directly with the source, you gain a decisive competitive edge:
15
years experience
- Core Technology: Proprietary optical designs ensure industry-leading performance and strict quality consistency.
- Customize available: Our veteran engineers and flexible factory rapidly turn your custom requirements into scalable solutions, shortening your R&D cycle.
- Factory Pricing & Strict QC: From raw materials to final aging tests, our rigorous quality control guarantees maximum reliability at highly competitive, direct factory prices.
