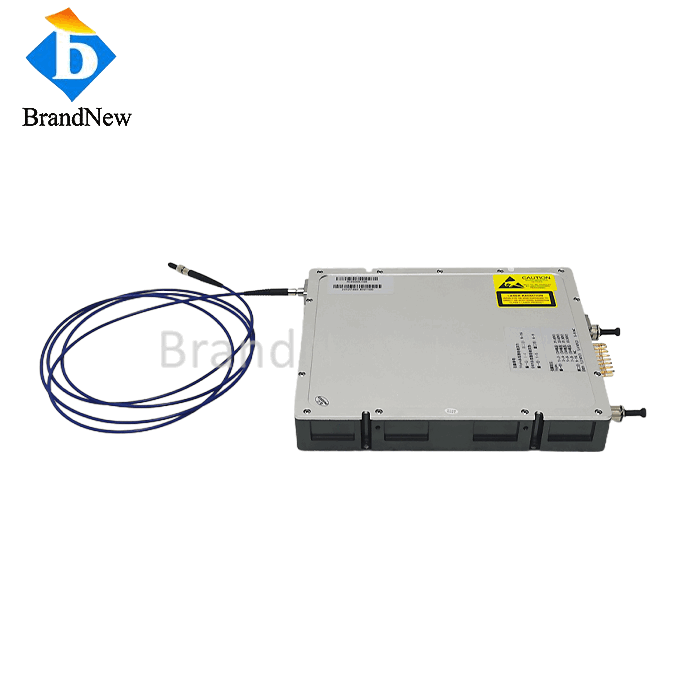

15W 450nm Unpluggable Fiber Coupled Diode Laser
Features:
- Center Wavelength：450±15nm
- CW
-
Compact and convenient housing for easy integration
Applications:
- Laser Additive Manufacturing
- precision metal sintering and welding
Specifications:
Item No:FC450DL15
Item Name: 15W 450nm fiber coupled diode laser
| Optical | |
| Center Wavelength | 450nm±15nm |
| Output Power | 15W |
| Working Mode | CW |
| Fiber | |
| Fiber Core | 200um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Connector | SMA905 |
| Electrical | |
| Operating Current Lop | 3A |
| Threshold Current Lth | 0.3A |
| Operating Voltage Vop | 24V |
| Thermal | |
| Test Temperature | 25℃ |
Design:
We are pleased to introduce our 450nm 15W fiber-coupled diode laser, designed for efficient material processing not possible with traditional infrared lasers.
Why choose blue laser?
Copper, gold, and other reflective materials absorb blue light significantly more than infrared light, making the 450nm wavelength ideal for the following applications:
Precision copper welding
Additive manufacturing/3D printing
Plastic welding
Laser welding
Key Features:
15W stable output @ 450nm
Non-pluggable fiber design - easy maintenance and integration
Customizable fiber core
Compact air-cooled design
Whether you're building an advanced laser system or enhancing precision machining capabilities, this module delivers high performance and easy integration.
By switching to blue laser technology, our customers have reported:
Improved processing speed
Better consistency in joint quality
Lower reject rates in production
