Description

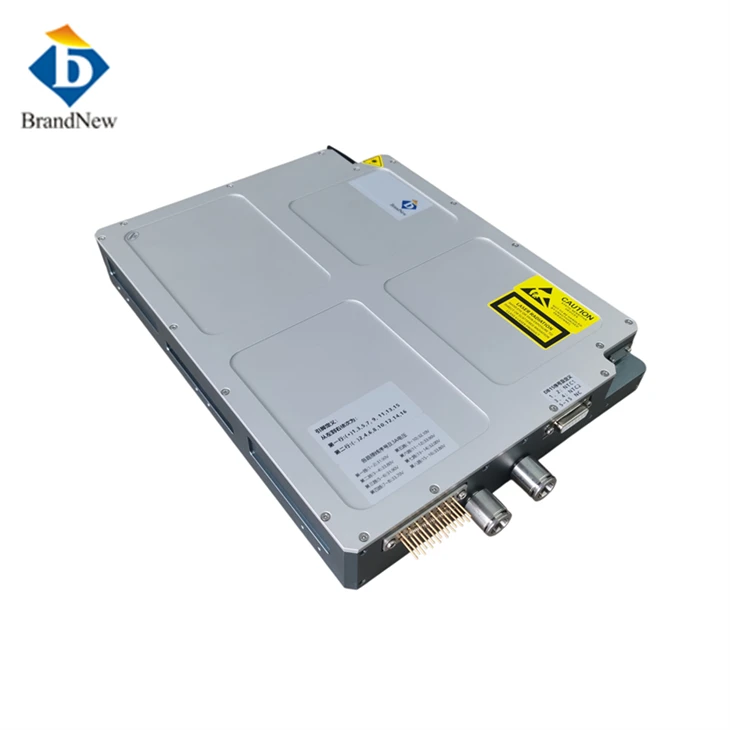

450nm 200W High Power Bule Fiber Laser Module
Key features:
- 200W ultra-high power CW output, 450nm blue wavelength with high energy density for precision processing
- 200um fiber core + SMA905 connector, low optical loss, stable high-power beam transmission
- Industrial heavy-duty thermal design, excellent heat dissipation for long continuous high-load operation
- Standard SMA905 plug-and-play interface, compact structure, easy integration with welding/cladding/3D printing systems
Applications:
- Industrial Material Processing: High-power laser cutting/engraving for metal, glass, ceramic and thick plastic
- Laser Cladding & Surface Modification: Blue laser cladding for metal workpiece surface hardening/repair
- High-brightness Illumination: Industrial machine vision, large-stage blue laser lighting systems
- OEM/ODM Integration: Core for custom high-power blue laser modules in industrial manufacturing equipment
Spec sheet:
Item No.: FC450DZ200
| Optical | Typical Value |
| Center Wavelength λ | 450nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 200W |
| Working Mode | CW |
| Electrical | |
| Operating Current Iop | 20A |
| Threshold Current Ith | 1.8A |
| Operating Voltage Vop | 45V |
| Aiming Beam | |
| Wavelength | 515±10nm |
| Power | 1mW |
| Operating Current Iop | 120mA |
| Operating Voltage Vop | 6.5V |
| Fiber | |
| Fiber Core Diameter | 200um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1M |
| Fiber Connector | SMA905 |
| Thermal | |
| Operating Temperature | 15~55℃ |
| Storage Temperature | -30-70℃ |
| Wavelength Temperature Coefficient | ～0.3nm/℃ |
Drawing
