Description

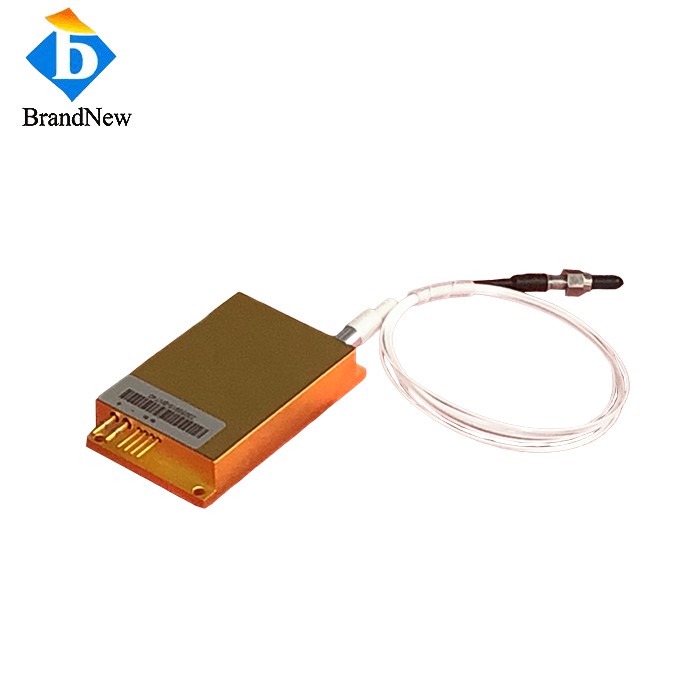

660nm 30W Detachable 200um Fiber Diode Laser
Feature:
- 660nm 30W Stable CW excellent spectral consistency.
- 200μm with detachable structure, easy fiber replacement
- High coupling efficiency, optimized heat dissipation
Applications:
- Medical & Aesthetic Devices: Ideal for red light phototherapy, skin rejuvenation and wound rehabilitation. Detachable fiber fits different treatment heads for diversified clinical use.
- Industrial Laser Processing: Suitable for plastic welding, thin material cutting and surface thermal treatment. Uniform red beam ensures stable processing quality.
- Large-area Laser Positioning & Marking: Applied to industrial positioning, safety warning and large-format marking, featuring high visibility and stable output.
This 660nm 30W fiber-coupled diode laser is equipped with 200μm detachable fiber, combining high power, good beam performance and easy maintenance. It runs stably with low heat generation and strong compatibility. Widely used in medical physiotherapy, industrial processing, laser marking and scientific research, it is a practical and high-reliability red laser solution.
Specifications:
Item No.:FC660CB5
| Optical | Typical Value |
| Center Wavelength | 655nm |
| Wavelength Tolerance | ±5nm |
| Output Power | 30W |
| Working Mode | CW |
| Fiber | Detachable |
| Fiber Core |
200um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Connector | SMA905 |
| Electrical | |
| Threshold Current Ith | 0.5A |
| Operating Current Lop | 2.2A |
| Operating Voltage Vop | 38.5V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
Drawing:
