500W 980nm Fiber Coupled Diode Laser

Product Description

High-power fiber-coupled lasers have shown broad application prospects in many fields, including laser processing, optical communications, laser radar, medical cosmetology and surgical lighting, microscopic analysis, photolithography manufacturing, optical communications, biomedicine, industrial online quality inspection, etc.
In the field of laser processing, fiber-coupled lasers have become the preferred tool for laser marking, laser cutting, laser welding and other processes due to their high precision and high speed

Features:

High power source 500W

Stable performance and long operating lifetime

Fiber:106.5um/1-2m/0.22NA/Bare End

Parallel sealing process, anti condensation design

Compact structure, good heat dissipation performance

500w




Spec sheet

Item No.: FC980DL500

Item Name: 500W 980nm Fiber Coupled Diode Laser

Optical
Center Wavelength 980nm
Wavelength Tolerance ±10nm
Output Power 500W
Spectral Width FWHM 10nm
Fiber
Fiber Bend Radius >60mm
Fiber Core 106.5um
Fiber Numerical Aperture (>90% Power) 0.17NA
Fiber Length 1.5~2m
Electrical
Operating Current Iop 24~26A
Threshold Current Ith 1.6A
Operating Voltage Vop 84~86V
Power Conversion Efficiency 45%
Thermal
Operating Temperature 15~45℃
Storage Temperature -30~70℃
Wavelength Temperature Coefficient 0.35nm/℃

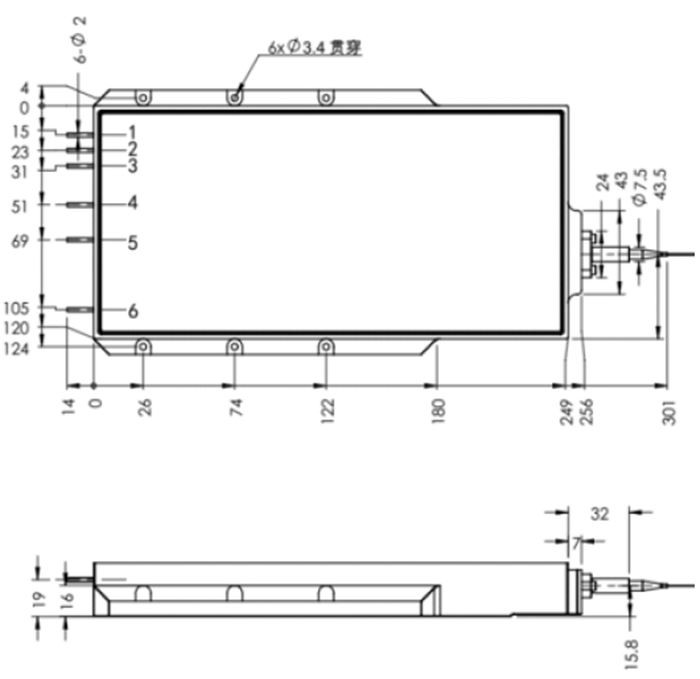

Drawing

W@_8M98]NJKE}J7{(X2S6DQ
