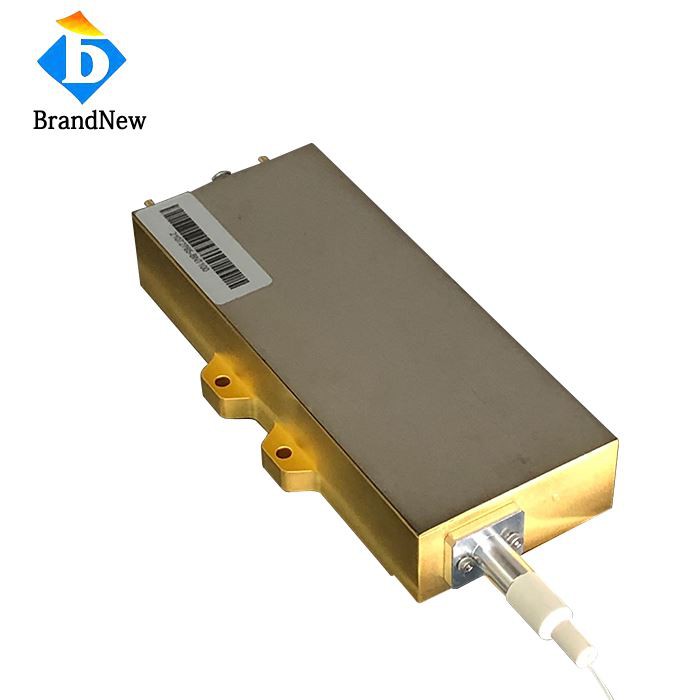

100W 1064nm Fiber Coupled Diode Laser
Features:
- 1064nm infrared wavelength, 100W stable CW output
- 105um fiber core + 0.22NA, optimized high-energy beam
- SMA905N connector, industrial plug-and-play integration
Applications:
- Industrial Laser Pumping: Premium high-power pump source for fiber/solid-state lasers, supporting metal cutting, welding and large-format marking production lines
- High-Power Material Processing: Applied in laser surface hardening, annealing and thick material micro-processing with high energy density
- Industrial Laser Systems: Core component for custom high-power laser integration, compatible with mainstream industrial cooling and control systems
This 100W 1064nm fiber coupled diode laser is engineered with 105um fiber core, 0.22NA and standard SMA905N connector, delivering high-power continuous-wave infrared output with exceptional coupling efficiency and stable beam quality. Its industrial-grade design optimizes thermal dissipation and structural stability, ensuring reliable long-term operation under high-power working conditions, and enables seamless integration into laser pumping systems, industrial material processing equipment and custom high-power laser setups. It is a high-performance, durable premium choice for industrial laser manufacturers, system integrators and high-power optoelectronic R&D institutions.
Data Sheet
Item No: FC1064DL100
| Optical | |
| Center Wavelength | 1064nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 100W |
| Fiber | |
| Fiber Core | 105um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Connector | SMA905 |
| Electrical | |
| Operating Current Iop | 12A |
| Threshold Current Ith | 1.0A |
| Operating Voltage Vop | 22V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |
Drawing:
