Description

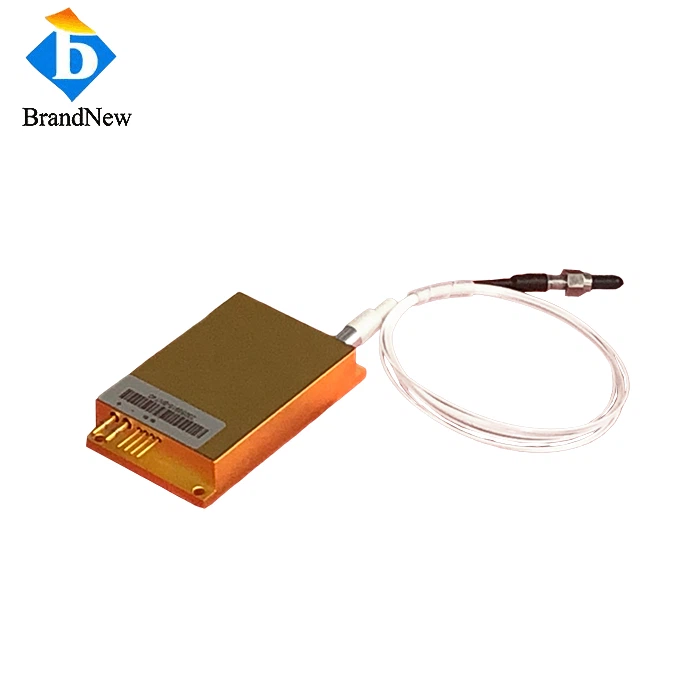

50W 1064nm Multi Pins Fiber Coupled Diode Laser
Features:
- 50W stable CW output, 1064nm infrared wavelength
- 400um fiber core + SMA905 connector, low optical loss
- Multi-pin design, easy electrical connection
Applications:
- Suitable for precision laser marking and deep engraving on metal, plastic, ceramic and gemstone materials
- Applied to laser welding and micro-welding of metal components, electronic parts and semiconductor leads
- Ideal for laser scribing and precision cutting of thin metal sheets, flexible films and electronic substrates
- Used for pumping small solid-state lasers, scientific research experiments and industrial material processing systems
Data Sheet
Item No: FC1064DZ50
| Optical | |
| Center Wavelength | 1064nm |
| Working Mode | CW |
| Output Power | 50W |
| Fiber | |
| Fiber Core | 400um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Connector | SMA905 |
| Electrical | |
| Operating Current Iop | 8A |
| Threshold Current Ith | 1.2A |
| Operating Voltage Vop | 12.5V |
| NTC | Optional |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
Drawing:
