Description

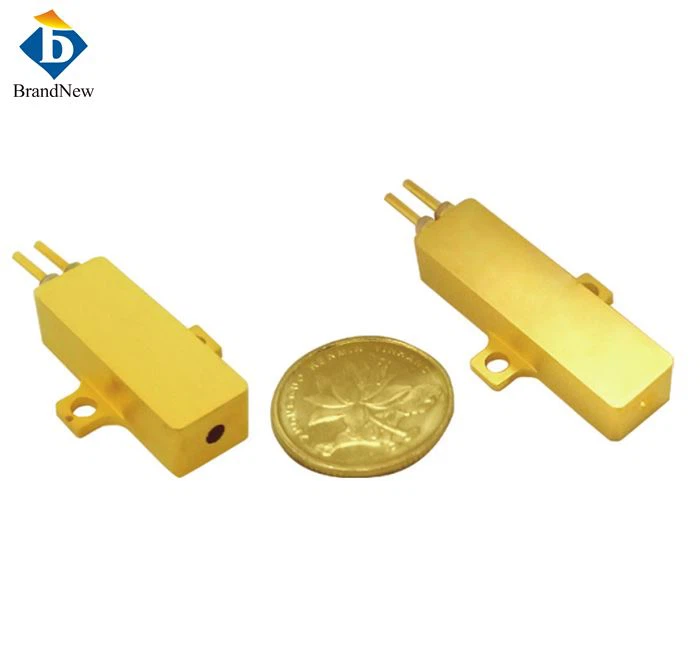

500uJ 1535nm Microchip Laser
Overview
Features:
- 500μJ high pulse 1535nm eye-safe wavelength.
- Excellent beam quality and narrow pulse width.
- High repetition rate, strong environmental stability.
Applications:
- Long-Range LiDAR & Autonomous Driving Perception: Widely used in vehicle-mounted long-distance LiDAR, robot perception, and UAV obstacle avoidance systems.
- Military & Police Laser Ranging: Applied in portable military rangefinders, artillery positioning systems, and long-range target designation equipment.
- Power Grid & Railway Inspection Systems: Used in on-line monitoring equipment for transmission lines, high-speed railway catenary, and tower structure detection.
- Topographic Mapping & Geodetic Surveying: Serves as a core light source for airborne mapping LiDAR, ground 3D terrain scanning, and geological survey systems.
This 500μJ 1535nm pulsed free-space laser diode features high pulse energy, eye-safe wavelength, and outstanding long-distance detection capability. It is widely used in long-range LiDAR, military ranging, power and railway inspection, topographic mapping, and security monitoring, providing a stable, reliable, and high-sensitivity solution for modern remote sensing and intelligent detection systems.
Spec sheet:
Item No.: FS1535DL05
| Parameter | Typical |
| Wavelength(nm) | 1535 |
| Pulse Energy(μJ) | 500 |
| Pulse Width(ns) | 5ns |
| Beam Divergence(mrad) | 10 |
| Frequency(Hz) | 10 |
| Beam Diameter(mm) | 0.3 |
| Beam Mode | TEM00 |
| Electrical | |
| Operating Current Iop | 20A |
| Operating Voltage Vop | 2V |
| Thermal | |
| Operational Temperature(℃) | -40~65 |
| Storage Temperatrue(℃) | -55~80 |
Package Drawing
