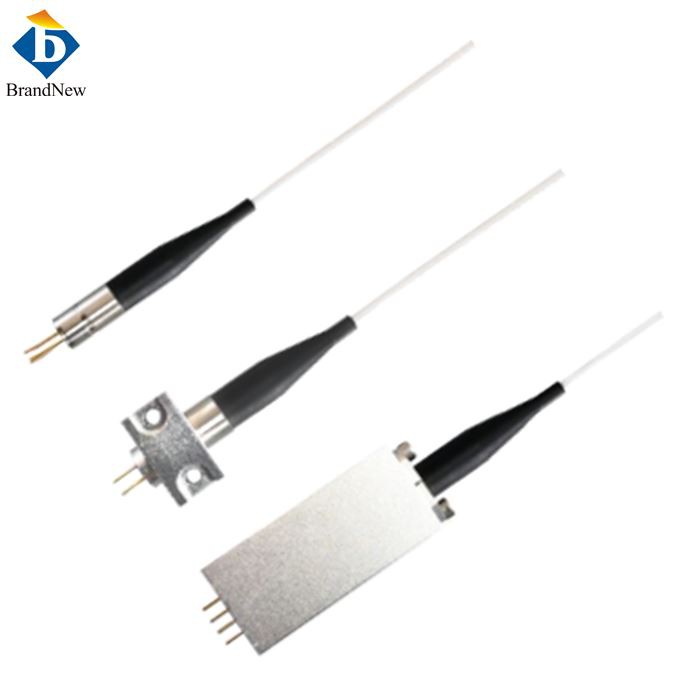

1330nm 2mW 5mW Single Mode Fiber Diode
In the field of optical communications, 1330nm 2mW 5mW Single Mode Fiber Diode, as one of the core devices in optical fiber communication systems, achieve high-speed and long-distance data transmission by coupling optical signals into optical fibers for transmission. It not only improves data transmission rate and capacity, but also reduces transmission loss and cost.
MAIN FEATURES
1330nm Pigtailed DFB Laser Diode with SM fiber
2mW Output power,Coaxial package; 5mW Output power, Butterfly package.

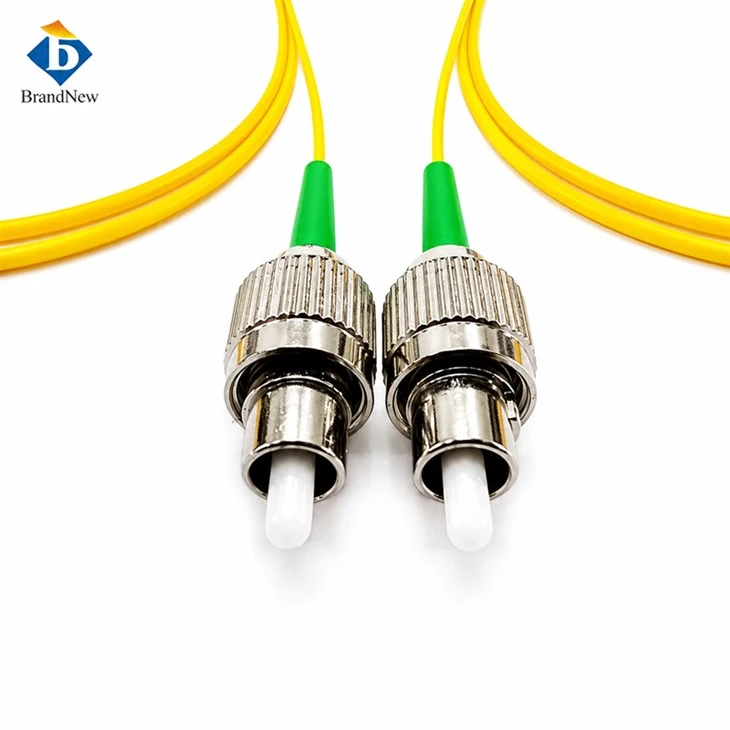

Build-in PD.FC/SC/SMA905 connector.
APPLICATIONS
Test Equipment
Optical Transmitter of Analog Signal
Optical Transmitter of Data Signal
Data sheet
Item Name: 1330nm 2mW SM Fiber Coupled Diode Laser
Item No.: FC1330SM0002
|
Optical |
|
|
Center Wavelength |
1330nm |
|
Wavelength Tolerance |
±5nm |
|
Output Power |
2mW |
|
Fiber |
|
|
Fiber Core Diameter |
9um |
|
Fiber Length |
1m |
|
Fiber Connector |
FC/SMA |
|
Electrical |
|
|
Operating Current Iop |
30mA |
|
Threshold Current Ith |
10mA |
|
Operating Voltage Vop |
1.1V |
|
Thermal |
|
|
Operating Temperature |
0~60℃ |
|
Storage Temperature |
-40-70℃ |
Drawing
