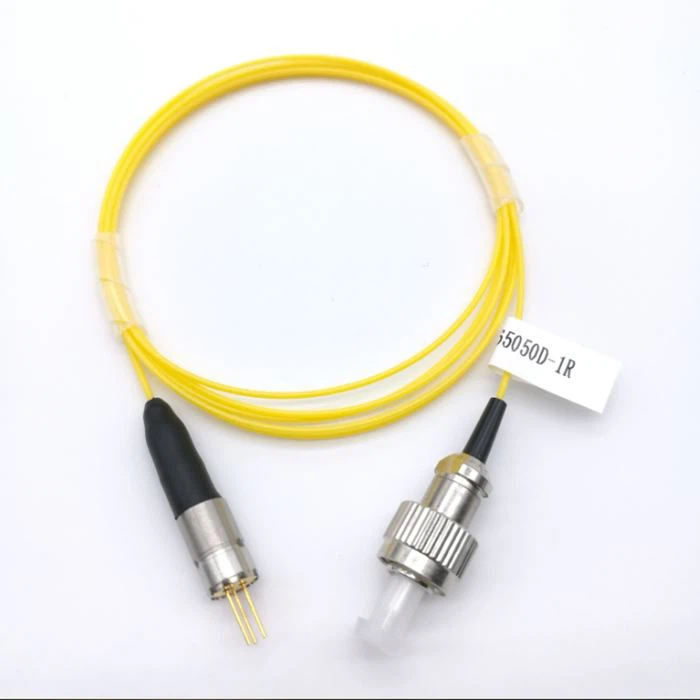

1570nm SM Fiber Coupled Diode Laser
Overview
Features
DFB wavelength stabilized single mode laser.
CW or pulsed operation.
Low threshold current and high slope efficiency.
Operating temperature range -0 oC to +75oC.
Wavelength/temperature coefficient 0.1nm/oC.
Built-in monitor photodiode.
Optional FC/PC or FC/APC connector.
Applications
Test Equipment
Optical Bidi Module and Optical Receiver
Optical Transmitter of Analog Signal
Optical Transmitter of Data Signal
Data sheet
Item No.: FC1570SM0005
|
Optical |
|
|
Center Wavelength |
1570nm |
|
Wavelength Tolerance |
±10nm |
|
Output Power |
5mW |
|
Fiber |
|
|
Fiber Core Diameter |
9um |
|
Fiber Numerical Aperture |
0.14NA |
|
Fiber Length |
1m |
|
Fiber Connector |
FC/SMA |
|
Electrical |
|
|
Operating Current Iop |
90mA |
|
Threshold Current Ith |
35mA |
|
Operating Voltage Vop |
0.9V |
|
Thermal |
|
|
Operating Temperature |
0~60℃ |
|
Storage Temperature |
-40-70℃ |
|
Temperature Coefficient |
~0.01nm/℃ |
Drawing
