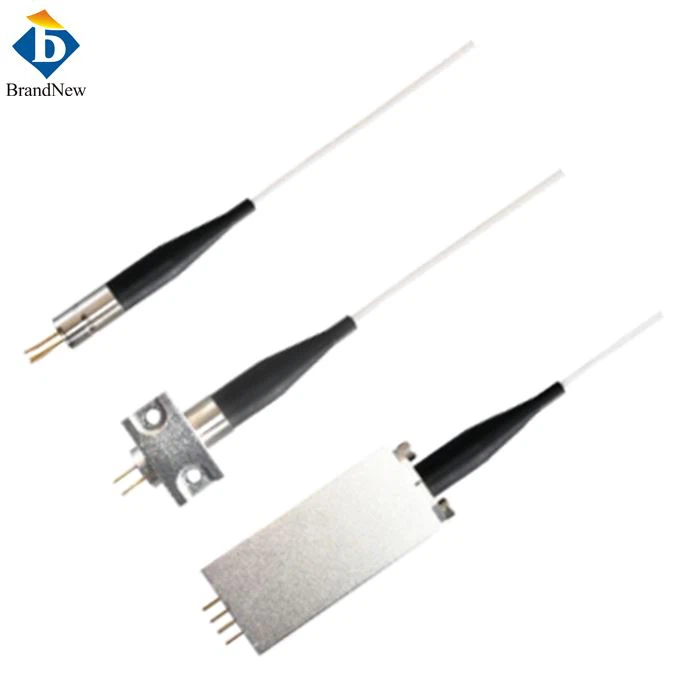

445nm 15mW SM Diode Laser Module
Features:
445nm Diode Laser Module With TEC cooler
10mW～15mW Output Power
3um Single Mode Fiber
0.12N.A.
Coaxial or 8-PIN Package
Built-in TEC cooler
FC/SMA05 connector optional
Applications：
Medical Laser Treatment
Biotechnology
Opto-electronics applications
Data sheet
Item No.: FC445SM0015
Item Name: 15mW 445nm Fiber Coupled Diode Laser
|
Optical |
|
|
Center Wavelength |
445nm |
|
Wavelength Tolerance |
±10nm |
|
Output Power |
15mW |
|
Spectral Width FWHM |
1nm |
|
Fiber |
|
|
Fiber Core Diameter |
4um |
|
Fiber Length |
1m |
|
Fiber Connector |
FC/SMA |
|
Electrical |
|
|
Operating Current Iop |
110mA |
|
Threshold Current Ith |
35mA |
|
Operating Voltage Vop |
2.5V |
|
Thermal |
|
|
Operating Temperature |
0~60℃ |
|
Storage Temperature |
-40-70℃ |
|
Temperature Coefficient |
~0.01nm/℃ |
Drawing
