Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 12 bars alma diode laser stack. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

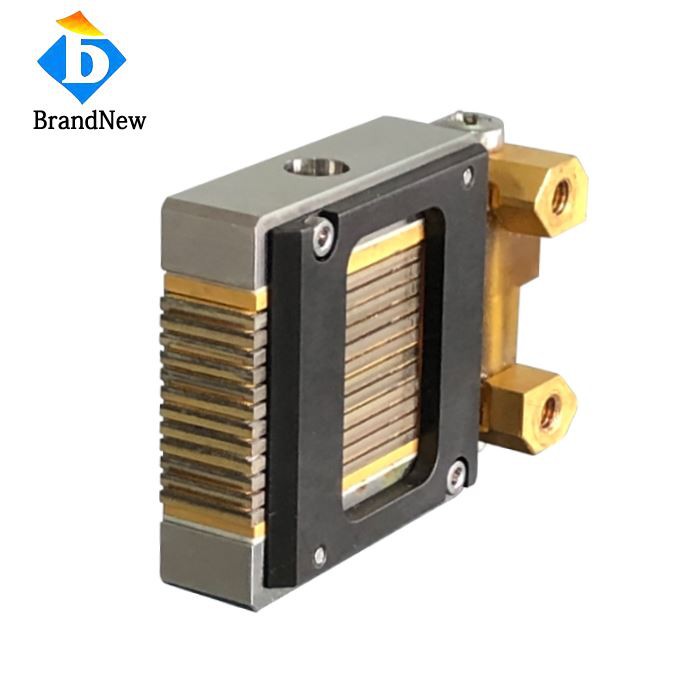

12 Bars Alma Diode Laser Stack
Repairing service
Why choose us?
* low cost
* with more than 8 years diode laser bar mounting experience
*use diode laser bar from Jenoptik and micro channel cooler Germany imported
Specification:
|
Model No. |
C |
| Wavelength |
808 ± 5nm |
| Output Power per Bar | 100W |
| Numbers of Bar | 12 |
| Bar to Bar Space | 1.8mm |
| Working Mode | CW |
|
Typical Operation current |
90A |
|
Typical Threshold current |
15A |
|
Maximum Operating Voltage |
24V |
| Fast Axis Divergence (FWHM) | 39Degree |
|
Slow Axis Divergence (FWHM) |
8Degree |
|
Operation Condition |
non-condemsing atmosphere, cleaning room |
| Expected lifetime |
10000hours |
|
Typical pitch per bar |
1.8mm |
|
Flow rate |
0.3L/min ±10% / Bar |
| Water Temperature | 25+-3°C |
Dimension：
Contact us:
