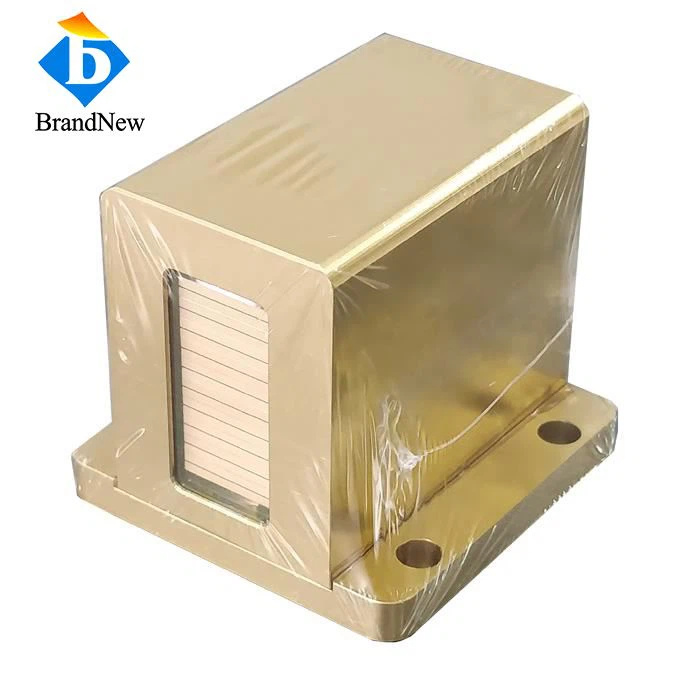

808nm Laser Bars for HuaFei
Quick details:
Standard Size for HuaFei Handpiece
Germany imported laser bars to make the laser energy more stable
808nm single wavelength, 3 wavelength combined is also available
10 Bars, 60W per bar, 600W totally
Working principle:
The process of diode laser’s working is the change from electric energy to light and heat energy. When the chip which is inside the macro channel is working, the cooling water flow inside the laser stack and bring the extra heat and make sure the chip going well.
Data sheet
Item No.:WC808VS600
|
Optical |
|
|
Center Wavelength |
808nm |
|
Output Power Per Bar |
60W |
|
Number of Bars |
10 |
|
Bar to Bar Spacing |
2mm |
|
Polarization Mode |
TE |
|
Slope Efficiency |
≥1.0W/A |
|
Pulse Width |
1~400ms |
|
Duty Cycle |
0.1~40% |
|
Electrical |
|
|
Operating Current Iop |
50A |
|
Threshold Current Ith |
11A |
|
Operating Voltage Vop |
19V |
|
Power Conversion Efficiency |
48% |
| Thermal | |
|
Operating Temperature |
15~30℃ |
|
Storage Temperature |
0-55℃ |
Drawing
