755 808 1064 Diode Stack For Palomar Vectus
Features:
Bars: 24 bars big spot size
Power of one bar: 100w
Channel: Macro channel
Diode: Two diode stacks used
Wavelength: 808nm or 3 wave mix for your choice
Data sheet
Item No.: WC781VS2400
Optical | |
Center Wavelength | 755nm 808nm 1064nm |
Wavelength Tolerance | ±15nm |
Working Mode | QCW |
Output Power Per Bar | 100W/Bar |
Number of Bars | 24 |
Fast Axis Divergence(FWHM) | 38Deg |
Slow Axis Divergence (FWHM) | 12Deg |
Pulse Width | ≤400ms |
Duty Cycle | ≤40% |
Electrical | |
Operating Current Iop | 100A |
Threshold Current Ith | 25A |
Operating Voltage Vop | 43.2V |
Power Conversion Efficiency | ~50% |
Thermal | |
Operating Temperature | 20~30℃ |
Storage Temperature | 0-55℃ |
Working Condition per Bar

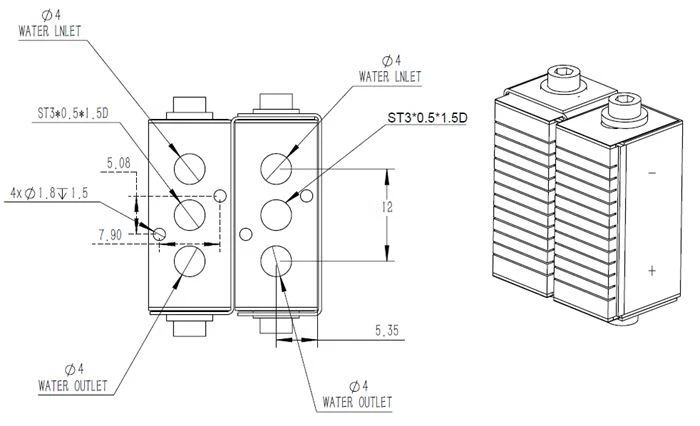

Drawing
