Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 760 808 1064 diode laser 10 bars module. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

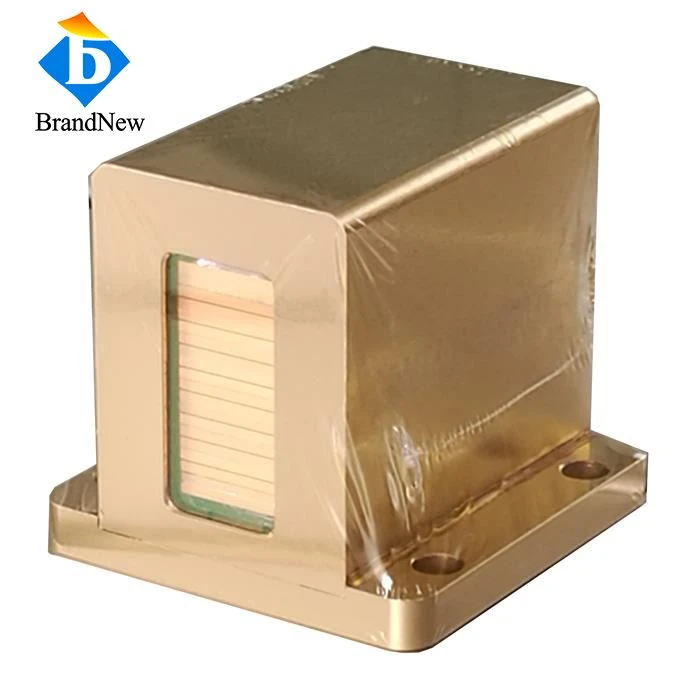

760 808 1064 Diode Laser 10 Bars Module
Advantages:
Triple wavelength 760 808 1064, combined better treatment result for all skin types.
Advanced Ausn soldering technology
Up to 60 W per bar in QCW mode
10bars, totally can reach 600w
Working current is 50A.
Working voltage is 18V.
Macro channel, water cooled
Fast axis collimation available
50% Efficiency drives market leading performance
Used for most of diode laser hair removal machine from China, such as ADSS, Honkon,Syntech
Data sheet
Item No.:WC781VS600
|
Optical |
|
|
Center Wavelength |
760/808/1064nm |
|
Output Power Per Bar |
50W/60W |
|
Number of Bars |
10 |
|
Pulse Width |
≤400ms |
|
Duty Cycle |
≤40% |
|
Electrical |
|
|
Operating Current Iop |
~50A/60A |
|
Threshold Current Ith |
~10A |
|
Operating Voltage Vop |
~19V |
|
Power Conversion Efficiency |
~50% |
|
Thermal |
|
|
Operating Temperature |
20~30℃ |
|
Storage Temperature |
0-55℃ |
|
Others |
|
|
Coolant |
Distilled Water |
|
Flow Rate/Bar |
4~6L/min |
|
Max Inlet Pressure |
350~500kPa |
|
Water Temperature(No Condensation) |
23~27℃ |
|
Filtered Water Particles |
<20μm |
Package Drawing
