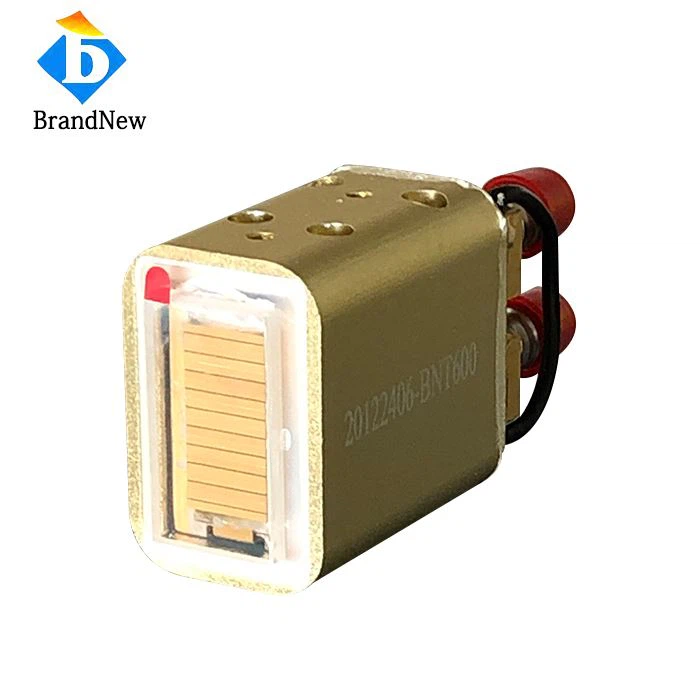

Diode Bar Stack for SHR
Overview
Quick details:
Over 30 million shots lifespan and 2 years warranty
808nm single wavelength or triple wavelength mix optional
The outside frame can be customized by users
USA imported laser bar with advanced mounting technology
High power 600W, achieving excellent hair removal effect.
Application:
Laser hair removal machine
Pumping source for solid-state laser
Wrinkle removal, tattoo removal
IR Illumination for surveillance
Data sheet
Item No.:WC808VS600
|
Optical |
|
|
Center Wavelength |
808nm |
|
Working Mode |
QCW |
|
Output Power Per Bar |
60W |
|
Number of Bars |
10 |
|
Polarization Mode |
TE |
|
Slope Efficiency |
≥1.0W/A |
|
Pulse Width |
1~400ms |
|
Duty Cycle |
0.1~40% |
|
Electrical |
|
|
Operating Current Iop |
50~60A |
|
Threshold Current Ith |
11~17A |
|
Operating Voltage Vop |
19~21V |
|
Power Conversion Efficiency |
45~48% |
| Thermal | |
|
Operating Temperature |
15~30℃ |
|
Storage Temperature |
0-55℃ |
