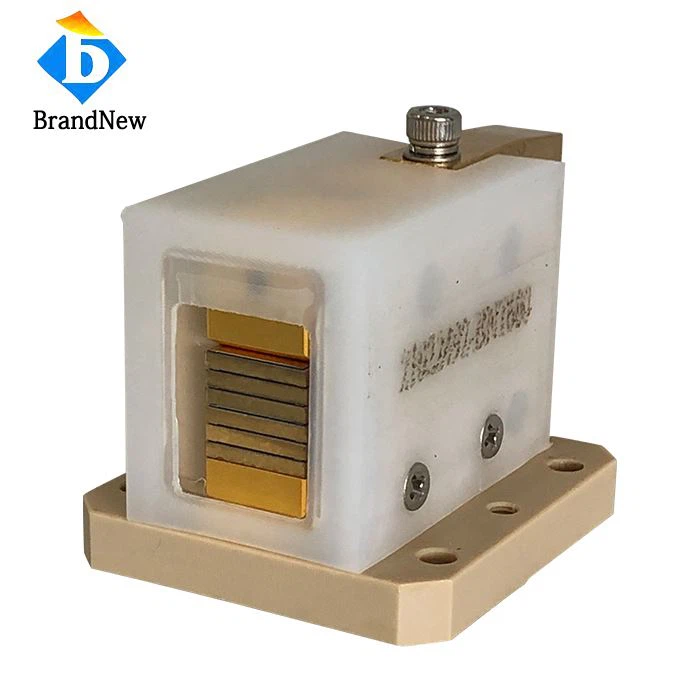

MedicaLaser D-Las 100 Diode Stack Module
Features:
100W output power per bar
Number of bars can be customized
Frame size can be customized
Excellent beam characteristics
Coating technology with high reliability and stability
Repair and replacement for MedicaLaser hair removal handpiece
Spec sheet
Item No.:WC808VS500
| Optical | |
| Center Wavelength | 808nm |
| Output Power Per Bar | 100W |
| Number of Bars | 5 |
| Pulse Width | ≤400ms |
|
Duty Cycle |
≤40% |
| Electrical | |
| Operating Current Iop | ~100A |
| Threshold Current Ith | ~10A |
| Operating Voltage Vop | ~12V |
| Power Conversion Efficiency | ~50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
