Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 160w 808nm diode laser bar for yag rod laser. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

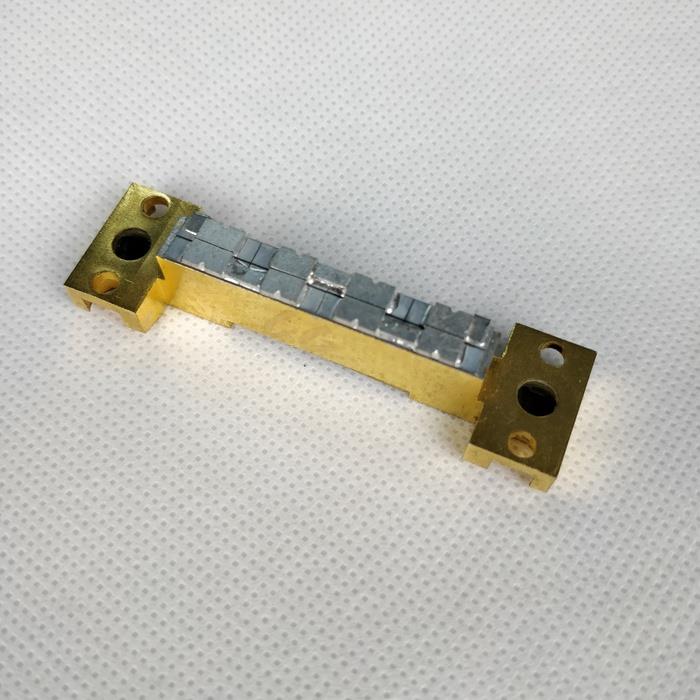

160W 808nm Diode Laser Bar for YAG Rod Laser
These Water-Cooled Laser Diode Linear Arrays are mainly designed for high power Nd:YAG rod lasers.
CW/QCW/Pulse
Specifications
Item No.:WC808HA160
| Optical Characteristics | |
| Center Wavelength λ | 808nm |
| Wavelength Tolerance | ±5nm |
| Output Power Per Bar | 40W |
| Number of Bars | 4 |
| Polarization Mode | TE |
| Spectral Width FWHM | ≤4 |
| Spectral Width FW90%E | ≤6 |
| Fast Axis Divergence FWHM | 35 Degree |
| Slow Axis Divergence FWHM | 8 Degree |
| Pulse Width | <0.3ms |
| Duty Circle | <10% |
| Electrical Characteristics | |
| Operating Current Iop | ≤48A |
| Threshold Current Ith | ≤10A |
| Operating Voltage Vop | ≤2V |
| Slope Efficiency | ≥1.05W/A |
| Power Conversion Efficiency | ≥45% |
| Thermal Parameters | |
| Operating Temperature | 15~30°C |
| Storage Temperature | 0~55°C |
Drawing:
