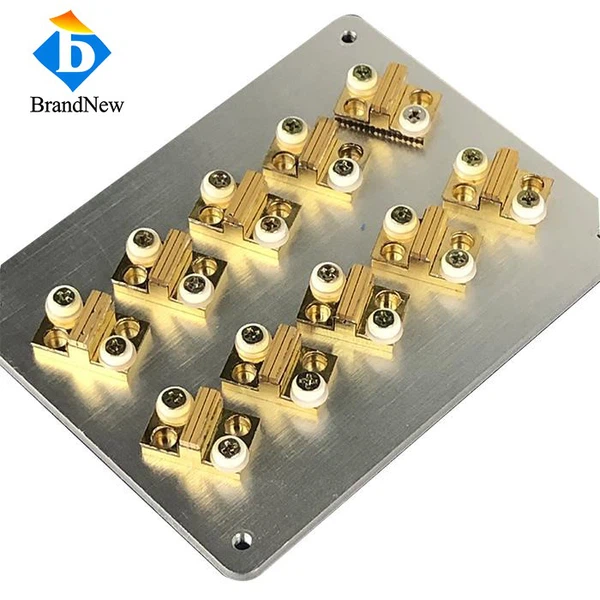

3 Bars 300W Horizontal Stack Diode Laser
Product Description
Overview
Horizontal stacked laser diodes consist of numerous diode laser bars arranged side-by-side. This arrangement allows for higher output power and greater beam uniformity, as the individual diodes can be individually controlled and adjusted.
Features
BrandNew offers a version of the industry-standard G Package.
8XXnm,9XXnm wavelength is available.
This configuration can produce up to 10000W of peak output power.
Applications
Horizontal Stacked Laser Diodes are designed to condense light beams emitted from the internal LD stack module and irradiate them onto a target object. The laser beams from the Horizontal Stacked Laser Diode modules can focused using prisms and lenses into a light spot or rectangle or line that has a high energy density optimized for dermatology/aesthetics, sensing, defense and materials processing applications such as metal processing, welding, heat treatment and marking.
Data sheet:
Item No.: CC940HA300
| Optical | |
| Center Wavelength | 940±5nm |
| Output Power Per Bar | 100W |
| Number of bars | 3 |
| Working Mode | QCW |
| Fast Axis Divergence(FWHM) | 50Deg |
| Slow Axis Divergence(FWHM) | 10Deg |
| Spectral Width FWHM | 6nm |
| Electrical | |
| Operating Current Iop | 100A |
| Threshold Current Ith | 15A |
| Operating Voltage Vop | 6V |
| Power Conversion Efficiency | 50% |
| Pulse Width | <400us |
| Duty Cycle | <2% |
| Frequency | <100Hz |
| Slope Efficiency | >1.1W/A |
| Thermal | |
| Operating Temperature | -45-+60℃ |
| Storage Temperature | -55-+85℃ |
| Wavelength Temperature Coefficient | ～0.3nm/℃ |

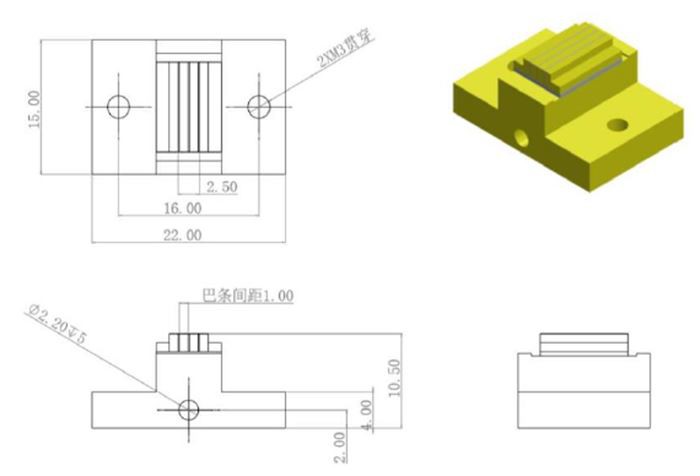

Package drawing:
