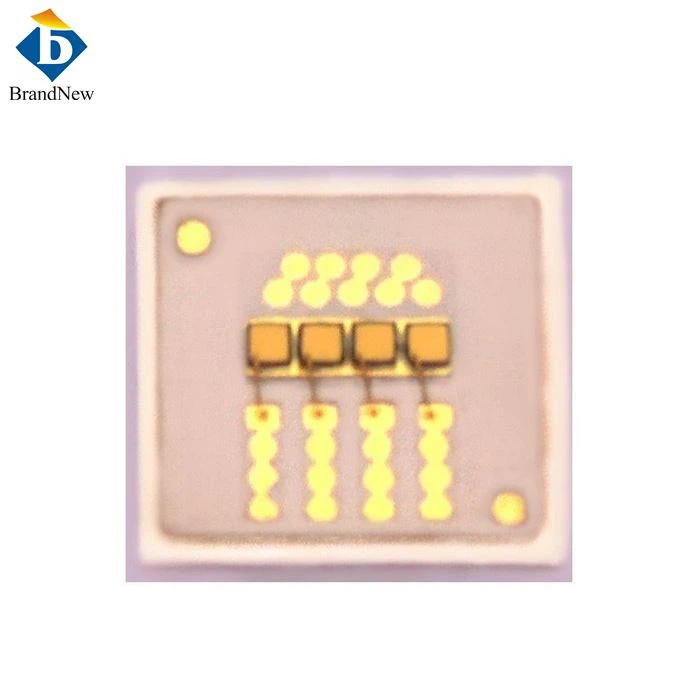

10W 850nm Pulsed VCSEL Diode
Vertical Cavity Surface Emitting Laser (VCSEL) has a complex semiconductor structure, but its packaging structure is generally simpler. Unlike edge-emitting laser diodes, EEL needs to be cleaved into bars to detect whether it is good or not, while VCSEL can detect the chip before packaging and screen the product, greatly reducing the risk cost of the product. There are three inspection processes in the VCSEL production process, and all three processes require a pulse current source to test the device. A fast, flexible and high-precision test solution is crucial to reducing the cost of testing.
Features
Good thermal conduction
Short rise time
Easy to collimate
Applications:
Scanning lidars
3D sensors
3D detection
Specifications:
Item No.: VC850SB10
|
Parameters |
Typ. |
|
Pulse Optical Power |
10W |
|
Threshold Current |
0.05A |
|
Forward Pulse Current |
73A |
|
Emission Area |
215*226um |
|
Peak Wavelength |
850nm |
|
Pulse Forward Voltage |
30V |
|
Beam Angle |
20Degrees |
|
Wavelength Shift |
0.07nm/℃ |
|
Rise time |
2.4ns |
|
Soldering Temperature |
260℃ |
|
Substrate |
AlN/CuAg |
|
Case Operating Temp |
-40~85℃ |
Pls use solder paste to cure the laser diode.
LIV Graph
![7S34AUBGKOVO)AC~{2{]K]S](/Content/uploads/202098745/202002281327239499566.png "product-1-1")
Pulse and Wavelength
![F}FUD]NK}BTP(6RZ(8K5P`D](/Content/uploads/202098745/202002281328351931817.png "product-1-1")
Multi package types optional
![~Z]Y2GA]6$M]W1WW9{2$$FG](/Content/uploads/202098745/20200511160832b30f482d1b87452f96ea4514ab9b8ba2.jpg "product-1-1")
![I49PHZD9K{0]_8RJIYQ$P62](/Content/uploads/202098745/20200511160944d855ff17832a4734b963a000d6fbf95d.jpg "product-1-1")
![SZ0U_DK9XEKH{7M]EH[GO3U](/Content/uploads/202098745/2020051116102792d86ebd752d4facaad7f5bbeb1d161d.jpg "product-1-1")
![2UDW4RSLFND[T[]1UF(2X~T](/Content/uploads/202098745/20200511161233875d1dd575d34c8aae61b588a986b667.jpg "product-1-1")
FAQ:
Could you do OEM(design and manufacture lasers for customer)?
Yes, we we have professional R&D team including software, hardware, electronics and designers 3D department and have enough ability to manufacture lasers completely according to customer's requirements.
What's package?
Original Carton Package. Or as customers' requirement.
