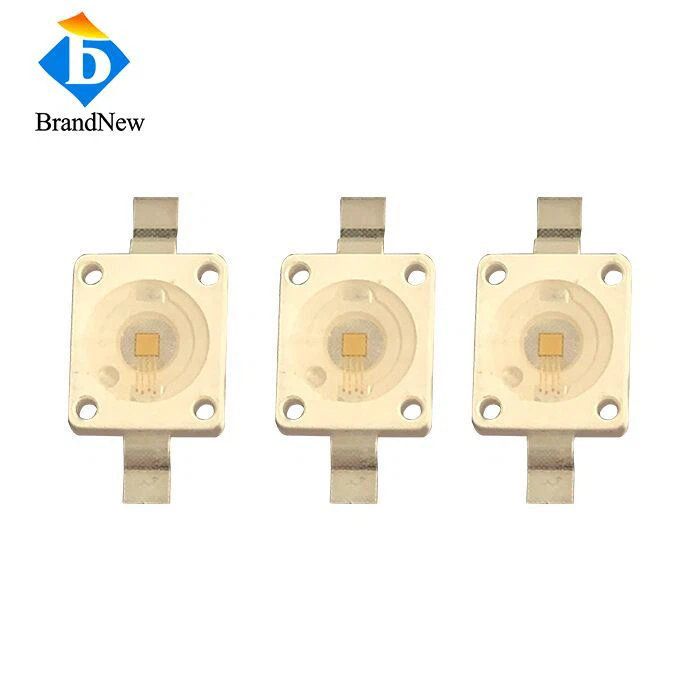

850nm 940nm 15W Pulsed VCSEL Diode
Features
850nm 940nm optional
Good thermal conduction
Short rise time
Oxide isolation technology
High reliability
Applications:
Scanning lidars
3D sensors
Proximity sensors
3D detection
Specifications:
|
Parameters |
Typ. |
|
Pulse Optical Power |
15W |
|
Threshold Current |
0.05A |
|
Forward Pulse Current |
20A |
|
Emission Area |
215*226um |
|
Peak Wavelength |
850nm/940nm |
|
Pulse Forward Voltage |
16V |
|
Beam Angle |
20Degrees |
|
Wavelength Shift |
0.07nm/℃ |
|
Rise time |
2.4ns |
|
Soldering Temperature |
260℃ |
|
Substrate |
AlN/CuAg |
|
Case Operating Temp |
-40~85℃ |
|
Storage Temp |
-40~105℃ |
LIV Graph
![7S34AUBGKOVO)AC~{2{]K]S](/Content/uploads/202098745/202002281327239499566.png "product-1-1")
Pulse and Wavelength
![F}FUD]NK}BTP(6RZ(8K5P`D](/Content/uploads/202098745/202002281328351931817.png "product-1-1")
Multi package types optional
![~Z]Y2GA]6$M]W1WW9{2$$FG](/Content/uploads/202098745/20200511160832b30f482d1b87452f96ea4514ab9b8ba2.jpg "product-1-1")
![I49PHZD9K{0]_8RJIYQ$P62](/Content/uploads/202098745/20200511160944d855ff17832a4734b963a000d6fbf95d.jpg "product-1-1")
![SZ0U_DK9XEKH{7M]EH[GO3U](/Content/uploads/202098745/2020051116102792d86ebd752d4facaad7f5bbeb1d161d.jpg "product-1-1")
![2UDW4RSLFND[T[]1UF(2X~T](/Content/uploads/202098745/20200511161233875d1dd575d34c8aae61b588a986b667.jpg "product-1-1")
FAQ:
Can you provide technology supports?
Yes, we have a professional technology supporting team for your timely services.
What is the lead time?
Normally 3-5 days. Customized products need 15 working days.
What is your terms of payment?
T/T or Western Union, for your choice.
