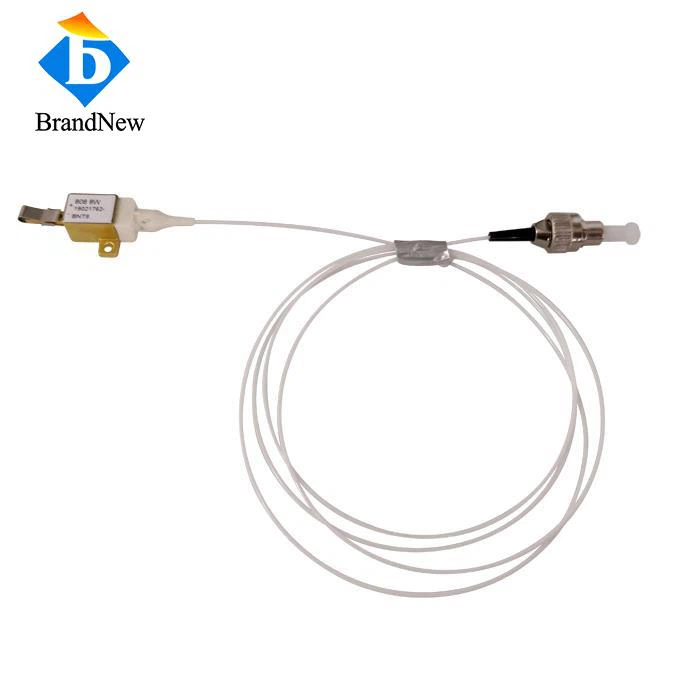

5W 808nm 810nm Fiber Coupled Laser Diode

5W 975nm 976nm 980nm Fiber Coupled Laser Diode

Product Description

5W 808nm 810nm Fiber Coupled Laser Diode are achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics.

‌808nm fiber-coupled lasers are widely used in many fields, including medical treatment, industrial manufacturing, scientific research, etc. ‌

In the medical field, 808nm fiber-coupled lasers can penetrate deep into the skin tissue and effectively destroy the target pigment or hair follicles, while reducing damage to the surrounding normal tissues to achieve precise treatment. In addition, it is also used to kill tumor cells and reduce damage to normal cells. In the field of scientific research, 808nm fiber-coupled lasers provide high-purity laser light sources, improve the precision and accuracy of spectral analysis, and support research work in the fields of quantum physics and optical communications‌

Drawing:

GX((`DWTD7]})$GC`5Y9G2Y

Data sheet:

Optical
Center Wavelength	808±5nm
Output Power	5W
Working Mode	CW
Spectral Width FWHM	5nm
Fiber
Fiber Bend Radius	>60mm
Fiber Length	1m
Fiber Core	105um
Fiber Numerical Aperture	0.22NA
Fiber Connector	SMA905/FC/ST
Electrical
Operating Current Iop	3A
Threshold Current Ith	0.5A
Operating Voltage Vop	6V
Power Conversion Efficiency	~45%
Thermal
Operating Temperature	15~55℃
Storage Temperature	-30-70℃
