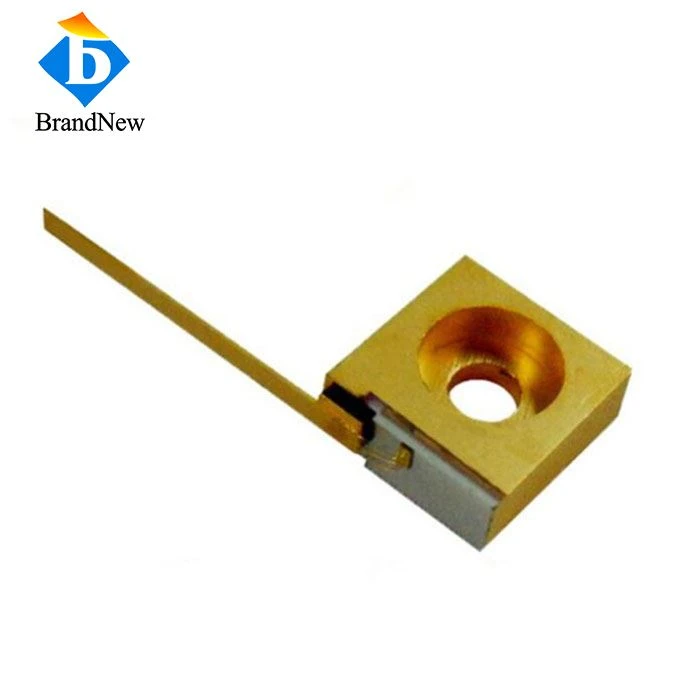

980nm 1W 2W 3W 5W 10W C-Mount Diode Laser
Advantages:
Ausn soldering technology
Output power 1w 2w 3w 5w 10w optional
Nearly diffraction limited
Passive cooling
F-Mount package also available
Spec sheet:
Item No.: CM980DL10
| Optical | |
| Center Wavelength λ | 980±5nm |
| Output Power | 10W |
| Slope Efficiency | 1.1W/A |
| Electrical | |
| Operating Current Iop | 11A |
| Threshold Current Ith | 0.3A |
| Operating Voltage Vop | 2V |
| Power Conversion Efficiency | 50% |
| Thermal | |
| Operating Temperature | 15~35℃ |
| Storage Temperature | -40~80℃ |
| Wavelength Temperature Coefficient |
0.3nm/℃ |
Package Drawing
