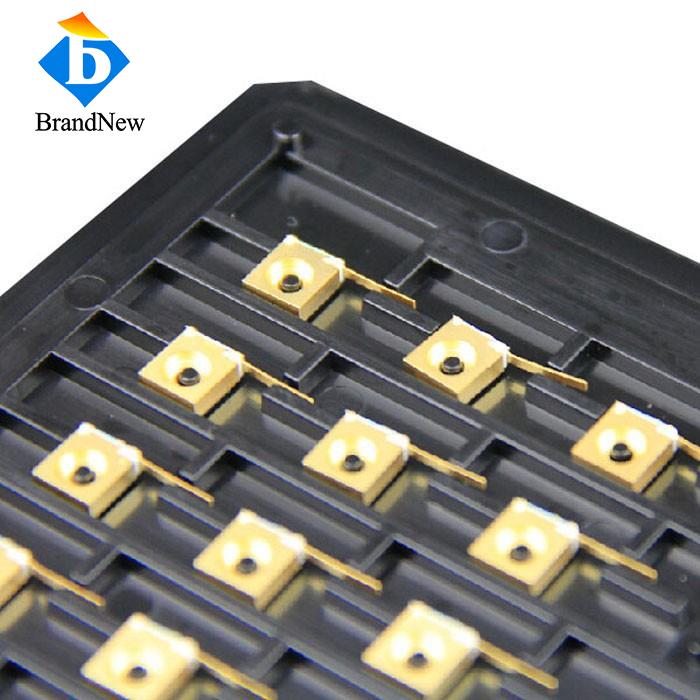

6W C-mount Diode Laser
6W C-mount Diode Laser is a compact, high-power sources that can be produced at a relatively low cost while providing larger emitter widths than those of conventional laser diodes. This diode is ideal for a cariety of applications requiring high output power, and can be custimized for targeted specifications such as wavelength and power to meet the user's needs
Feature:
Au/Sn bonding of chip to c-mount open heatsink
RoHS compliance, FAC optioanl
6W output power at 808nm
Long Lifetime and good performance
Specifications
Item No.: CM808DL6
| Optical | |
| Center Wavelength λ | 808nm |
| Wavelength Tolerance | ±5nm |
| Output Power | 6W |
| Slope Efficiency | 1.1W/A |
| Electrical | |
| Operating Current Iop | 5A |
| Threshold Current Ith | 0.3A |
| Operating Voltage Vop | 2V |
| Power Conversion Efficiency | 50% |
| Thermal | |
| Operating Temperature | 15~35℃ |
| Storage Temperature | -40~80℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |
Drawing
